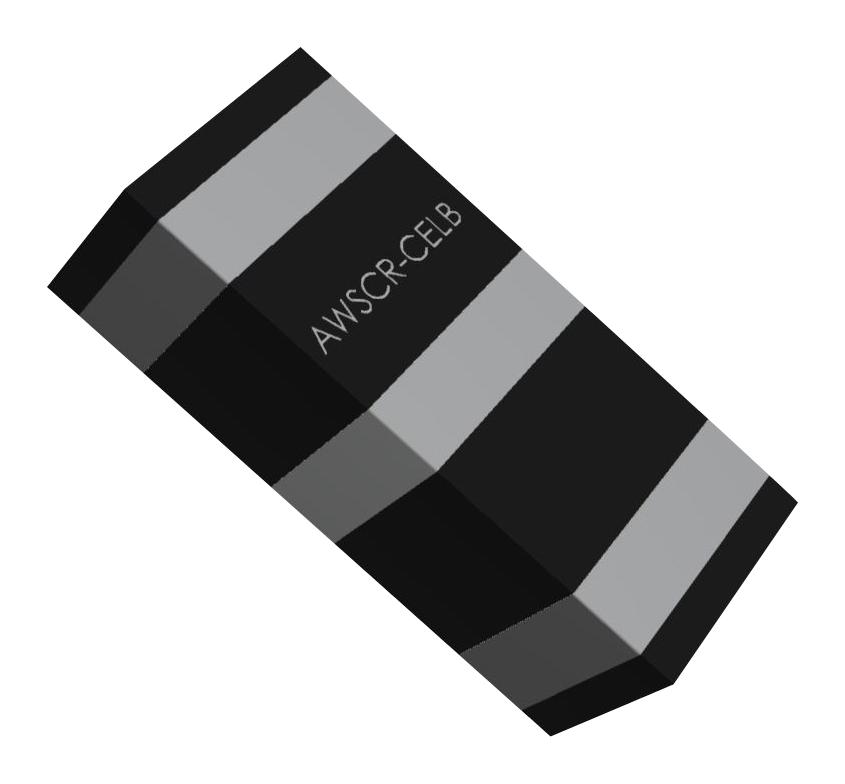

ABRACON AWSCR1000CELBC33T3 Miniature Ceramic Resonator
The ABRACON AWSCR-10.00CELB-C33-T3 is a miniature ceramic resonator offering a compact and reliable solution for timing and frequency control in a wide range of applications. Its small size (3.2 x 1.3 x 1.0 mm) makes it ideal for space-constrained designs, while its low resonance impedance ensures stable operation. The resonator operates across a frequency range of 8.00 to 12.00 MHz and is designed to withstand temperatures from -40°C to +125°C. It is commonly used in metering systems, remote control devices, microprocessor circuits, and industrial control systems, providing accurate and consistent timing signals. The component is RoHS compliant and packaged in reels of 3000 units.
ABRACON AWSCR1000CELBC33T3 Miniature Ceramic Resonator Specifications:
- Frequency Range: 8.00 - 12.00 MHz
- Resonant Impedance (Ro): 40 Ω (8.00 MHz – 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 15 pF (8.00 MHz – 12.00 MHz, Tol 1pF ±20%)
- Frequency Tolerance: -0.5 to +0.5 %
- Temperature Coefficient of Oscillation: -0.2 to +0.2 %
- Withstanding Voltage: 50 V DC (1 min)
- Voltage Rating (DC): 6 V
- Voltage Rating (AC): 15 Vp-p
- Insulation Resistance: 500 MΩ (10V, 1 min)
- Operation Temperature: -40 to +125 ºC
- Storage Temperature: -55 to +125 ºC
- Aging Rate (Fosc): -0.2 to +0.2 % (for 10 years)
- Size: 3.2 x 1.3 x 1.0 mm
- RoHS Compliant: Yes
- Packaging: 3000 pcs/reel
