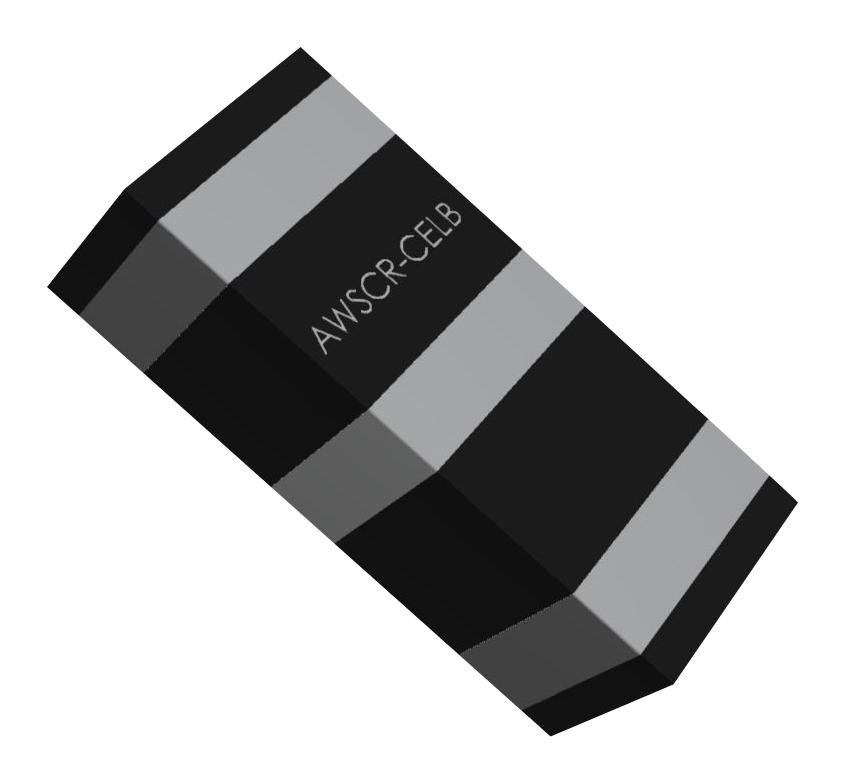

ABRACON AWSCR1200CELBC33T3 Miniature Ceramic Resonator
The ABRACON AWSCR-12.00CELB-C33-T3 is a miniature ceramic resonator offering a compact and reliable solution for frequency control in a wide range of applications. Its small size (3.2 x 1.3 x 1.0 mm) makes it ideal for space-constrained designs, while its low resonance impedance ensures stable operation. The resonator is designed to withstand temperatures from -40°C to +125°C, making it suitable for harsh industrial environments. It is RoHS compliant and features a built-in capacitance option for enhanced performance. Common applications include metering systems, remote control devices, microprocessor circuits, and industrial control systems.
ABRACON AWSCR1200CELBC33T3 Miniature Ceramic Resonator Specifications:
- Frequency Range: 8.00 - 12.00 MHz
- Resonant Impedance (Ro): 40 Ω (8.00 MHz – 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 15 pF (8.00 MHz – 12.00 MHz, Tol 1pF ±20%)
- Frequency Tolerance: -0.5 to +0.5 %
- Temperature Coefficient of Oscillation: -0.2 to +0.2 %
- Withstanding Voltage: 50 V DC, 1 min
- Voltage Rating (D.C.): 6 V
- Voltage Rating (A.C.): 15 Vp-p
- Insulation Resistance: 500 MΩ (10V, 1 min)
- Operation Temperature: -40 to +125 ºC
- Storage Temperature: -55 to +125 ºC
- Aging Rate (Fosc): -0.2 to +0.2 % (for 10 years)
- Dimensions: 3.2 x 1.3 x 1.0 mm
- RoHS Compliant: Yes
- Packaging: 3000 pcs/reel
