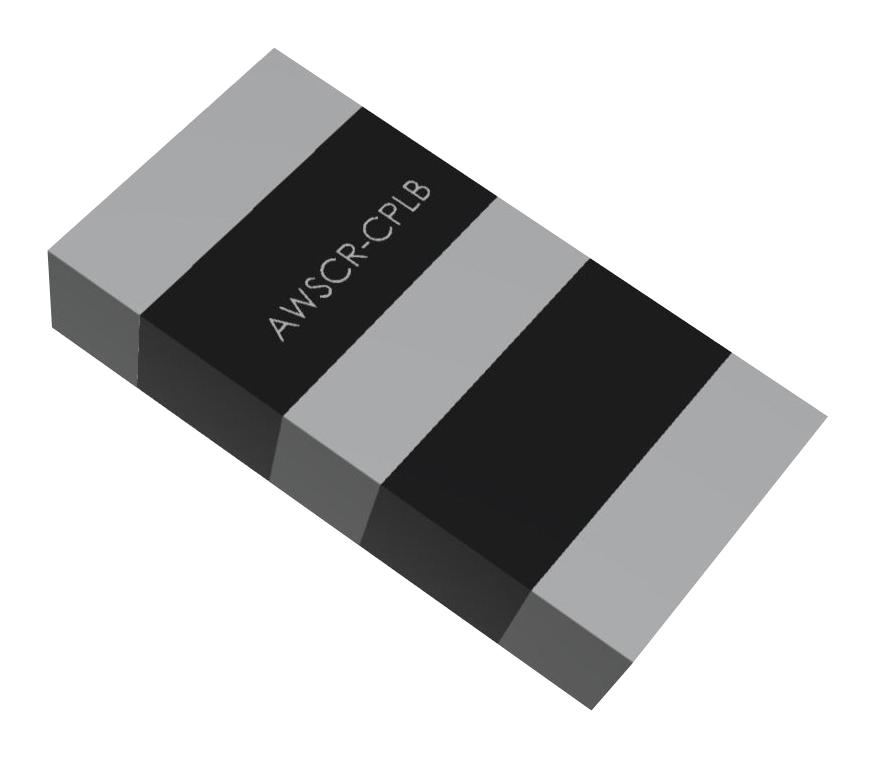

ABRACON AWSCR500CPLBC30T4 Ceramic Resonator
The AWSCR500CPLBC30T4 is a miniature ceramic resonator designed for precise frequency generation in electronic applications such as metering systems, remote control, microprocessors, industrial control, and electric appliances. Featuring a compact size of 6.0 x 3.0 x 1.8mm, it provides stable performance over a wide temperature range, complies with RoHS standards, and is not moisture sensitive. Its broad frequency range from 1.84 MHz to 12.00 MHz with various capacitance options ensures reliable operation in challenging conditions and various circuit designs.
ABRACON AWSCR500CPLBC30T4 Ceramic Resonator Specifications:
- Size: 6.0 x 3.0 x 1.8mm
- Frequency Range: 1.84 MHz to 12.00 MHz
- Resonant Impedance (Ro): 100Ω at 1.84-8.00 MHz, 150Ω at 8.01-12.00 MHz
- Maximum Storage Temperature: +125°C
- Operating Temperature Range: -40°C to +125°C
- Frequency Tolerance: ±1pF (20%)
- Capacitance Range: 10pF to 47pF
- Material: Ceramic with RoHS/REACH compliance
- Moisture Sensitivity: MSL=1
- Certification: RoHS and REACH compliant
- Built-in Capacitance Options: 10pF, 22pF, 33pF, 39pF, 47pF
- Packaging: T4 tape, 4000 pieces/reel
- Application: Metering, remote controls, microprocessors, industrial control, electric appliances
- Test Conditions: Temp: 20°C±15°C, Humidity: 65±20% R.H.
- Dimensions: 6.0 mm length, 3.0 mm width, 1.8 mm height
Buy the Abracon Series AWSCR Ceramic Resonator: AWSCR500CPLBC30T4
Purchase the Abracon Series AWSCR500CPLBC30T4 ceramic resonator online today and take advantage of its compact size, wide frequency range, low resonance impedance, and RoHS compliance. Ideal for precise timing in metering, control systems, microprocessors, and appliances, this 6.0 x 3.0 x 1.8mm component offers stable performance over a broad temperature range. Ensure your circuit's stability and reliability with this proven, compliant resonator designed for demanding electronic applications. Order now and get reliable timing solutions delivered quickly.
Order your Abracon Series AWSCR500CPLBC30T4 miniature ceramic resonator today and ensure reliable frequency stability for your electronic projects.
Frequently Asked Questions
Where can I buy ABRACON AWSCR500CPLBC30T4?
You can click on the BUY or RFQ button to purchase AWSCR500CPLBC30T4 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR500CPLBC30T4?
You can download the AWSCR500CPLBC30T4 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR500CPLBC30T4?
ABRACON
