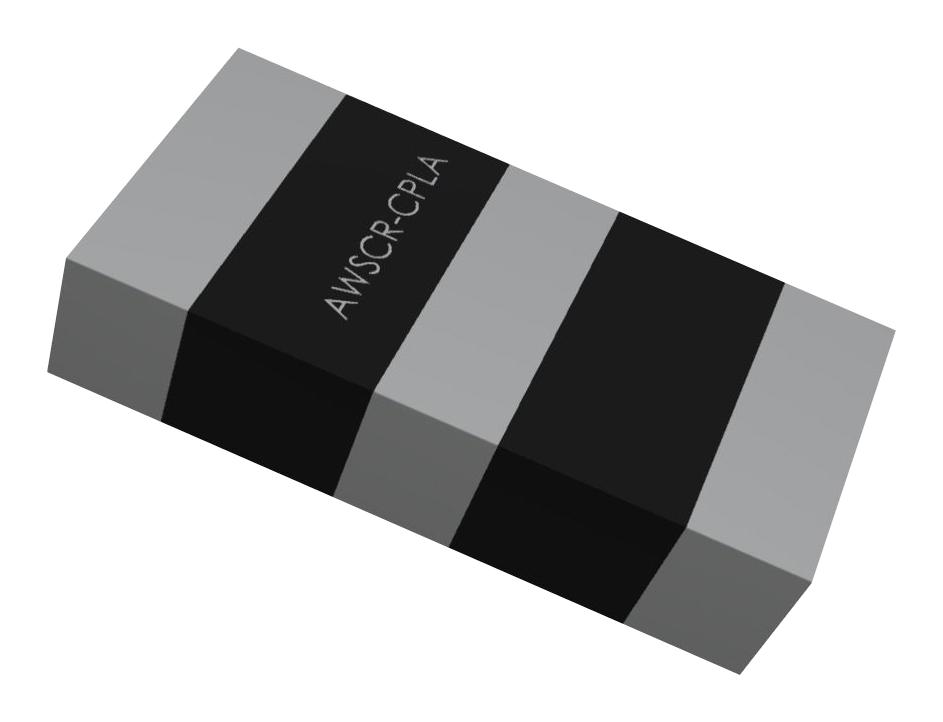

ABRACON AWSCR600CPLAC30T4 Ceramic Resonator
The miniature ceramic resonator AWSCR600CPLAC30T4 measures 6.0 x 3.0 x 1.8mm and operates within a frequency range of 1.84 MHz to 12.00 MHz. It features RoHS compliance, low resonance impedance, built-in capacitance options, and wide operating temperature from -40°C to 85°C. Suitable for metering systems, remote controls, microprocessors, industrial control, and electric appliances, this resonator offers stability, RoHS compliance, and reliable performance in compact dimensions, making it ideal for precise frequency generation applications.
ABRACON AWSCR600CPLAC30T4 Ceramic Resonator Specifications:
- Dimensions: 6.0 x 3.0 x 1.8mm
- Frequency Range: 1.84 MHz to 12.00 MHz
- Resonant Impedance: 50Ω (approximate)
- Built-in Capacitance: 10, 15, 22, 33, 39, 47pF options
- Temperature Range: -40°C to +85°C
- RoHS/RoHS I Compliant
- Maximum Storage Temperature: +85°C
- Moisture Sensitivity Level: Not Moisture Sensitive (MSL=1)
- Voltage Rating: 10V for operation
- Applicable to applications involving microprocessors, industrial control, and electric appliances
- Tolerance: ±20% (typical, based on frequency)
- Rated for reflow soldering with peak temperature of 260°C for up to 10 seconds
Buy the Abracon Series AWSCR Ceramic Resonator: AWSCR600CPLAC30T4
Experience the high-quality performance of the Abracon ceramic resonator AWSCR600CPLAC30T4, measuring 6.0 x 3.0 x 1.8mm. With a frequency range from 1.84 MHz to 12.00 MHz, it supports a variety of electronic applications such as microprocessors, industrial control systems, and metering devices. Its RoHS compliance ensures environmentally friendly manufacturing, while its low resonance impedance and built-in capacitance options guarantee stable operation across a wide temperature range of -40°C to +85°C. Designed for reliable, compact frequency generation, this resonator is perfect for your next project.
Order your Abracon Series AWSCR600CPLAC30T4 ceramic resonator today and enhance your electronic designs with reliable frequency stability and compact size.
Frequently Asked Questions
Where can I buy ABRACON AWSCR600CPLAC30T4?
You can click on the BUY or RFQ button to purchase AWSCR600CPLAC30T4 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR600CPLAC30T4?
You can download the AWSCR600CPLAC30T4 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR600CPLAC30T4?
ABRACON
