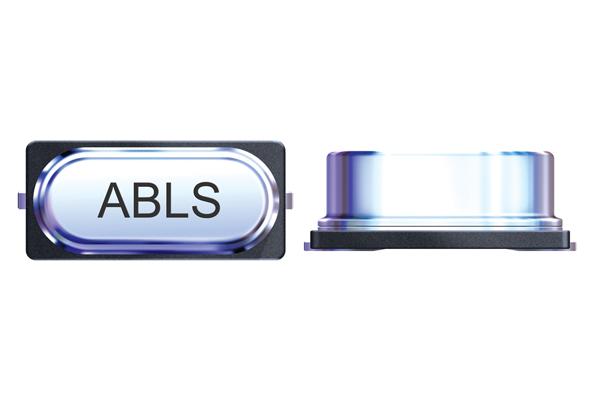

ABRACON ABLS10000MHZB4YT Low Profile Crystal
The HC/49US SMD low profile crystal offered by Abracon operates at frequencies from 3.579545 MHz to 75 MHz, suitable for various electronic applications including computers, modems, and wireless devices. This hermetically sealed, RoHS-compliant crystal features a compact 15x4.7x2.2 mm design, with stable frequency tolerance and temperature ranges from -55°C to +125°C. It provides high reliability for industrial and commercial electronics, ensuring excellent frequency stability, low aging, and low power consumption, ideal for precision timing and frequency control in demanding environments.
ABRACON ABLS10000MHZB4YT Low Profile Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Mode: AT cut (fundamental or 3rd overtone) or BT cut
- Frequency Tolerance: ±50 ppm at +25°C (standard), options available
- Temperature Range: -55°C to +125°C for extended stability, variants from -10°C to +70°C
- Equivalent Series Resistance: as per standard ESR tables
- Shunt Capacitance: Max. 18 pF
- Drive Level: 1 mW max., typical 100 µW
- Aging: ±5 ppm first year
- Insulation Resistance: ≥ 500 MΩ at 100 VDC
- Material: RoHS compliant, hermetically sealed quartz crystal
- Dimensions: 15 x 4.7 x 2.2 mm, low profile package suitable for SMD mounting
- Reflow Profile: Compatible with RoHS reflow profiles, Peak temp at +260°C
- Application: Microprocessor clock, wireless devices, timing circuits, industrial electronics
Buy the Abracon ABLS Series 10000 MHz – Reliable SMD Crystal for Industrial Applications
Order the Abracon ABLS series low profile crystal today to ensure high stability, low jitter, and reliable timing for your electronic projects. Perfect for industrial, wireless, and microprocessor applications, this hermetically sealed SMD component guarantees excellent frequency stability across a wide temperature range. Its compact size makes it ideal for space-constrained designs without compromising performance. With RoHS compliance and proven durability, purchasing this crystal online provides quick delivery, competitive pricing, and assurance of quality, enabling seamless integration into your electronics manufacturing processes.
Buy Abracon ABLS Series crystal now and experience unmatched reliability and precision for your industrial and wireless applications.
Frequently Asked Questions
Where can I buy ABRACON ABLS10000MHZB4YT?
You can click on the BUY or RFQ button to purchase ABLS10000MHZB4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS10000MHZB4YT?
You can download the ABLS10000MHZB4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS10000MHZB4YT?
ABRACON
