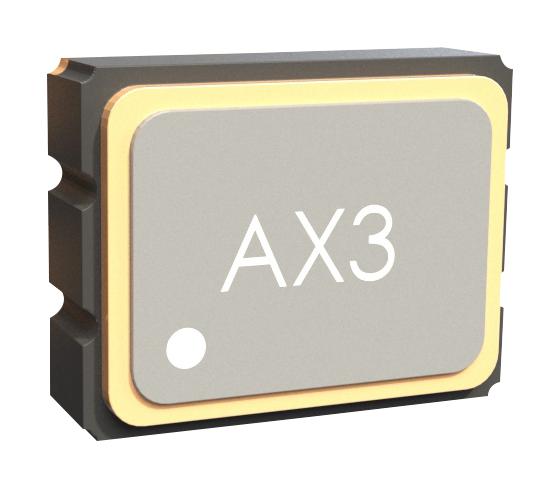

ABRACON AX3DAF11142850 Oscillator
The ClearClock ultra-low jitter oscillator features industry-standard frequencies between 100MHz and 200MHz, with exceptional RMS jitter as low as 75fs. Available in compact 3.2 x 2.5 mm footprints, it supports multiple differential output formats including LVPECL, LVDS, and HCSL. Designed for high-performance networking, RF systems, and data centers, it offers excellent stability over temperature ranges from -40°C to +85°C and low power consumption, making it ideal for test & measurement and communication applications.
ABRACON AX3DAF11142850 Oscillator Specifications:
- Frequency Range: 100 - 200 MHz
- Frequency Stability: ±425 ppm over -40°C to +85°C
- Supply Voltage: 3.3V, 2.5V, 1.8V options
- Output Types: LVPECL, LVDS, HCSL
- Dimension: 3.2 x 2.5 x 1.0 mm
- Power Consumption: LVDS @ 156.25MHz typical 16mA
- Jitter: RMS < 80fs (typ), max 150fs @ 156.25MHz
- Operating Temp: -40°C to +85°C
- RoHS Compliant, MSL= 1
- Packaging: Tape & Reel (1000 or 3000 units), Bulk options available
- Reflow Profile: Preheat 150-200°C, Peak 260°C+5°C, duration 20-40 sec
Buy the Abracon Series ClearClock Ultra-Low Jitter Oscillator: AX3DAF11142850
Purchase the Abracon AX3DAF11142850 ultra-low jitter oscillator online today and experience industry-leading stability and low power consumption. Designed for high-performance networking, RF systems, and data centers, this oscillator offers exceptional jitter performance as low as 75fs RMS, while supporting multiple differential output formats such as LVPECL, LVDS, and HCSL. With a compact 3.2 x 2.5 mm footprint and operating temperature range from -40°C to +85°C, it's ideal for demanding applications. Enjoy quick delivery, secure ordering, and expert support when buying online.
Get Abracon AX3DAF11142850 today—built for precision, low jitter, and reliable performance in high-speed networking and RF applications.
Frequently Asked Questions
Where can I buy ABRACON AX3DAF11142850?
You can click on the BUY or RFQ button to purchase AX3DAF11142850 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3DAF11142850?
You can download the AX3DAF11142850 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3DAF11142850?
ABRACON
