ABRACON AX3DBF11228800 Ultra-Low Jitter Oscillator
The ultra-low jitter and power-efficient crystal oscillator offers reliable frequency stability for industrial and communication applications. With RMS jitter less than 80fs at 156.25MHz, it ensures precise timing in test and measurement, data centers, and network systems. Available in standard frequencies between 100MHz and 200MHz, it features a compact 3.2 x 2.5 mm footprint and multiple differential output formats including LVPECL, LVDS, and HCSL. Suitable for high-performance RF systems, base stations, and optical Ethernet networks, it operates over -40°C to +85°C with low power consumption of only 16mA typical at 156.25MHz. The device complies with RoHS standards and is MSL 1 rated for reliable assembly.
ABRACON AX3DBF11228800 Ultra-Low Jitter Oscillator Specifications:
- Frequency Range: 100MHz to 200MHz
- Supply Voltage: Available in 3.3V, 2.5V, 1.8V options
- Output Formats: LVPECL, LVDS, HCSL
- Jitter: < 80fs RMS at 156.25MHz (typical), max 150fs
- Stability: 425ppm over -40°C to +85°C temperature range
- Operating Temperature: -40°C to +85°C
- Power Consumption: 16mA at 156.25MHz (typical)
- Package: 3.2 x 2.5 x 1.0 mm
- RoHS Compliant, MSL 1 rated
- Frequency Accuracy: ±10ppm at shipment, ±45ppm over temperature
- Aging: 15ppm over 20-year lifespan
- Rise/Fall Time: 300 to 500 ps
- Output Voltage: High level Voh=1.40–1.60V, Vol=0.66–0.74V (LVPECL), Voh=0.85V, Vol=0.15V (HCSL), Vout=0.7*Vy (HCSL)

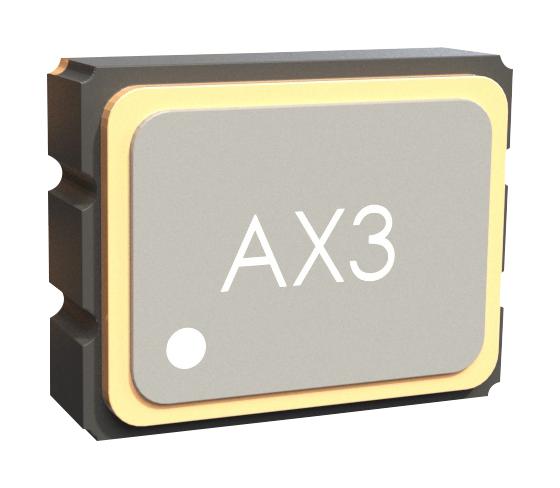

Buy the Abracon AX3DBF11228800 – Reliable Crystal Oscillator for Industrial Applications
Enhance your electronic system with the Abracon ultra-low jitter oscillator. Designed for industrial, networking, and RF applications, it provides exceptional stability, with RMS jitter below 80fs at 156.25MHz. Its compact size, multiple differential output formats like LVPECL, LVDS, and HCSL, along with low power consumption of 16mA, make it ideal for demanding environments. Operating over -40°C to +85°C, this RoHS-compliant device ensures precise timing and reliability for test & measurement, data centers, and optical Ethernet systems. Order online today for fast delivery.
Buy Abracon AX3DBF11228800 now and experience unmatched reliability and performance in high-precision timing solutions.
Frequently Asked Questions
Where can I buy ABRACON AX3DBF11228800?
You can click on the BUY or RFQ button to purchase AX3DBF11228800 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3DBF11228800?
You can download the AX3DBF11228800 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3DBF11228800?
ABRACON
