ABRACON AX3DCF11228800 Ultra-Low Jitter Crystal Oscillator
The ultra-low jitter and power-optimized crystal oscillator offers exceptional performance in a compact 3.2 x 2.5 mm footprint, suitable for high-speed digital applications like test & measurement, data centers, and optical Ethernet. It features RMS jitter less than 80fs at 156.25MHz, with operational frequency range from 100MHz to 200MHz, and low power consumption of 16mA at 156.25MHz. Available in multiple differential output formats including LVPECL, LVDS, and HCSL, it provides excellent stability over -40°C to +85°C and is RoHS compliant, ideal for demanding networking and RF systems.
ABRACON AX3DCF11228800 Ultra-Low Jitter Crystal Oscillator Specifications:
- Frequency Range: 100MHz to 200MHz
- RMS Phase Jitter: <80fs @ 156.25MHz
- Supply Voltage Options: 1.8V, 2.5V, 3.3V
- Supply Current: 16mA at 156.25MHz (typical)
- Frequency Stability: ±425ppm over -40°C to +85°C
- Output Formats: LVPECL, LVDS, HCSL
- Footprint: 3.2 x 2.5 mm, height 1.0 mm
- RoHS Compliant, MSL=1
- Temperature Range: -40°C to +85°C
- Package: Surface-mount, industry standard dimensions
- Available in tape & reel packaging for volume manufacturing

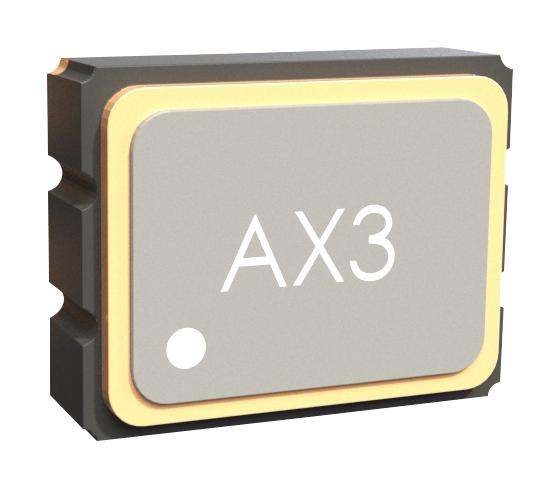

Buy the Buy Abracon Crystal Oscillator Part Number AX3DCF11228800 Online
Enhance your electronic systems with this ultra-low jitter crystal oscillator featuring RMS jitter less than 80 femtoseconds, operating between 100 and 200MHz, and low power consumption. Designed in a compact 3.2 x 2.5 mm package, it supports multiple differential output formats including LVPECL, LVDS, and HCSL for versatile high-speed digital applications. Suitable for networking, test & measurement, RF systems, and data centers, it ensures high stability over -40°C to +85°C, complying with RoHS standards, and available for quick purchase online.
Buy Abracon AX3DCF11228800 now and experience unmatched reliability and power-efficient high-speed clock signals for your critical systems.
Frequently Asked Questions
Where can I buy ABRACON AX3DCF11228800?
You can click on the BUY or RFQ button to purchase AX3DCF11228800 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3DCF11228800?
You can download the AX3DCF11228800 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3DCF11228800?
ABRACON
