ABRACON ASGTX5DBF12000000 High-Performance TCXO
The Jitter Optimized, Factory Programmable +3ppm TCXO offers ultra-low RMS phase jitter of 332 fs at 156.25MHz, and spans frequencies from 15MHz to 2,100MHz. Designed for high-performance applications such as networking, optical Ethernet, RF systems, and data centers, it features multiple differential outputs including LVPECL, LVDS, HCSL, and CML. Its compact 5.0 × 3.2mm footprint, low power consumption, and excellent stability over temperature and product life make it suitable for demanding industrial, communications, and test & measurement environments.
ABRACON ASGTX5DBF12000000 High-Performance TCXO Specifications:
- Dimensions: 5.0x3.2x1.5mm, RoHS/RoHS II Compliant, package type 5.0 × 3.2mm
- Frequency Range: 15MHz to 2,100MHz, with options for specific carrier frequencies
- Output Options: LVPECL, LVDS, HCSL, CML differential signals
- Supply Voltage: 2.50V, 2.75V, 1.80V, or 3.3V depending on configuration
- Supply Current: Up to 100mA at 2,100MHz, 3.3V
- Phase Jitter: 332 fs RMS typical at 156.25MHz, 231 fs at 1.0000GHz, 213 fs at 2.0000GHz
- Frequency Stability: ±43 ppm over -40°C to +85°C, aging ±100 ppm first year, total stability over 20 years ±1250 ppm
- Temperature Range: -40°C to +85°C
- Enable/Disable Time: 2.50 ms, Power-up time: 10 ms
- Carrier Frequency Accuracy: ±10 ppm at shipment, total stability includes temperature, aging, and reflow effects
- Package Meets industry standards with multiple options including tape & reel for high-volume manufacturing

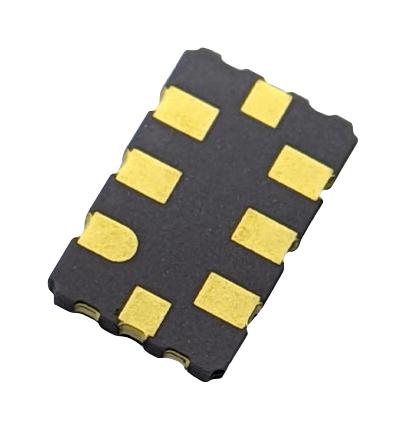

Buy the Abracon ASGTX5 – Reliable High-Performance TCXO for Industrial Applications
Order the Abracon ASGTX5 today to experience the highest quality high-precision TCXO available online. Perfect for networking, RF, data centers, and communication systems, this device offers ultra-low jitter, superb stability over temperature and long-term aging, and multiple differential outputs. Its compact size fits seamlessly into industrial and testing environments. Built for reliability and accuracy, order now and ensure your projects meet the highest standards of timing precision and durability for years to come.
Get Abracon ASGTX5 today—designed for precision, ultra-low jitter, and long-lasting durability.
Frequently Asked Questions
Where can I buy ABRACON ASGTX5DBF12000000?
You can click on the BUY or RFQ button to purchase ASGTX5DBF12000000 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASGTX5DBF12000000?
You can download the ASGTX5DBF12000000 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASGTX5DBF12000000?
ABRACON
