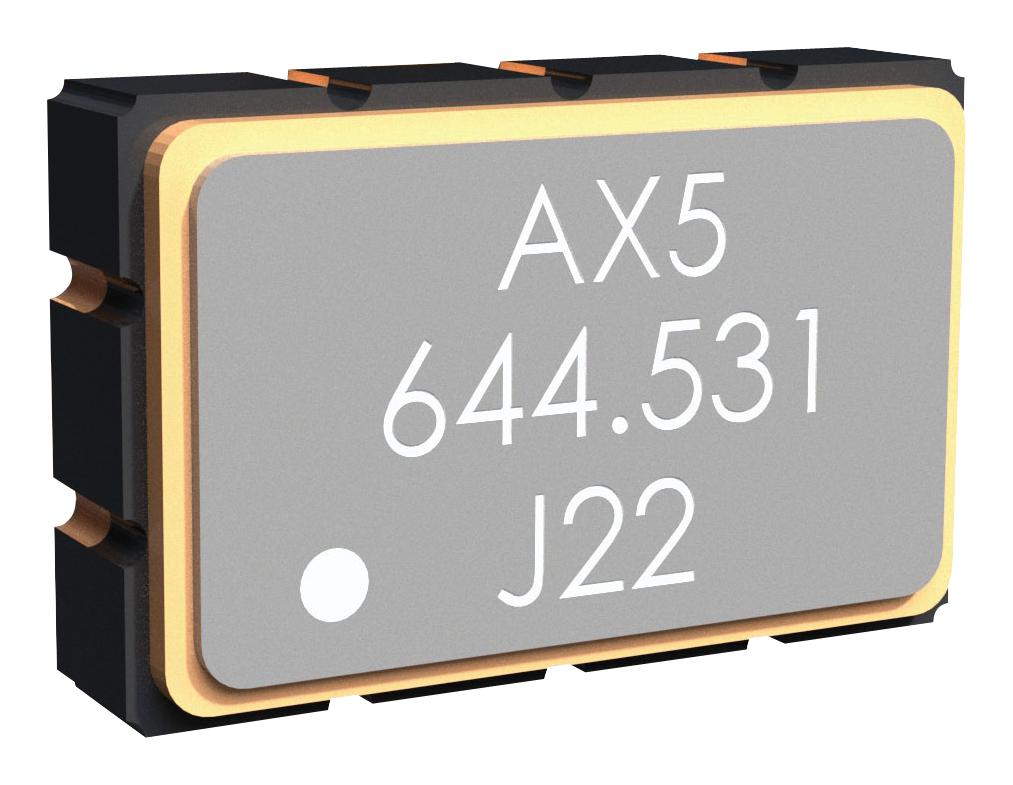

ABRACON AX5DBF16220800C Quartz Oscillator
The product is an ultra-low jitter, power-optimized quartz oscillators with a standard 5.0 x 3.2 mm footprint, suitable for networking, data centers, and RF applications. It features RMS phase jitter as low as 118 fs at specified frequencies, with a frequency range from 50 MHz to 2100 MHz. The device offers stable operation over -40°C to +85°C, with low power consumption and multiple differential output options including LVPECL, LVDS, HCSL, and CML. RoHS compliant and MSL 1 rated, it is designed for high-precision timing requirements in communications, test & measurement, and industrial systems.
ABRACON AX5DBF16220800C Quartz Oscillator Specifications:
- Dimensions: 5.0 x 3.2 x 1.4 mm
- RoHS/RoHS II Compliant
- MSL= 1
- Frequency Range: 50 to 2100 MHz
- Output Options: LVPECL, LVDS, HCSL, CML
- Supply Voltage: 3.3V, 2.5V, 1.8V
- Frequency Accuracy: ±10 ppm max @ 25°C
- Frequency Stability: ±15 ppm over -40°C to +85°C
- Phase Jitter: as low as 118 fs RMS (at specified frequencies)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +150°C
- Power Consumption: approximately 60mA typical at 3.3V
- Rise/Fall Time: 400 ps
- Duty Cycle: 45-55%
- Package: 5.0 x 3.2 mm, 1.4 mm height
Buy the Abracon AX5DBF16220800C – Reliable Oscillator for Industrial Applications
Purchase the Abracon AX5DBF16220800C online and ensure your systems operate with unmatched precision and stability. This oscillator offers ultra-low jitter, stable frequency performance from 50 to 2100 MHz, and a compact 5.0 x 3.2 mm package suitable for networking, RF, and data center applications. RoHS compliant with proven reliability and low power consumption, making it ideal for high-precision timing in demanding environments. Order now to benefit from fast delivery and dependable quality for your industrial, communication, or measurement systems.
Get Abracon AX5DBF16220800C today—built for high stability, ultra-low jitter, and long-lasting performance in critical systems.
Frequently Asked Questions
Where can I buy ABRACON AX5DBF16220800C?
You can click on the BUY or RFQ button to purchase AX5DBF16220800C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX5DBF16220800C?
You can download the AX5DBF16220800C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX5DBF16220800C?
ABRACON
