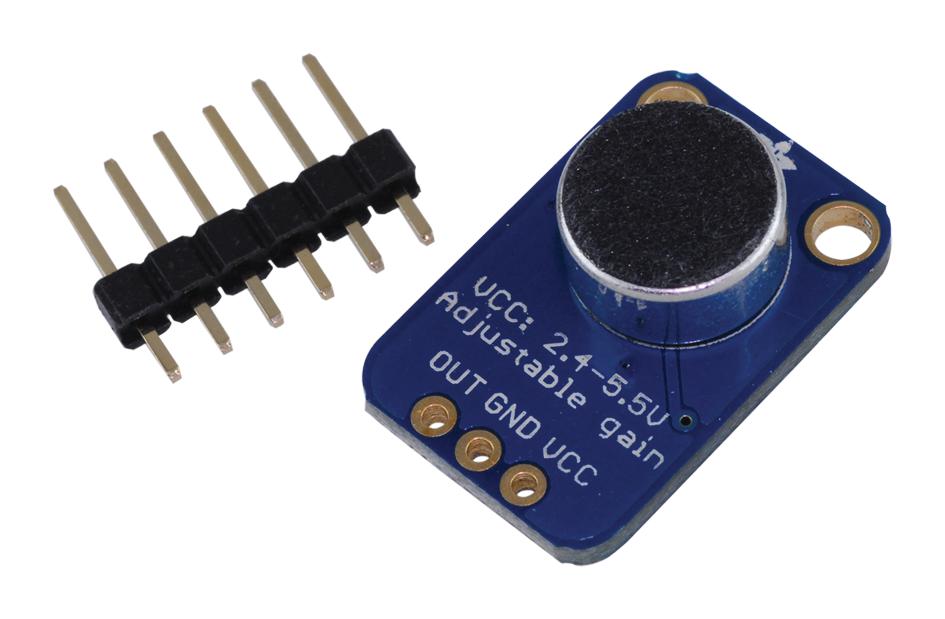

ADAFRUIT 1063 Electret Microphone Amplifier
The Adafruit Electret Microphone Amplifier (Part 1063) is a fully assembled and tested board featuring a 20-20KHz electret microphone and the Maxim MAX4466 op-amp. Designed for low noise and excellent power supply rejection, this amplifier is ideal for projects requiring audio input, such as voice changers, audio recording/sampling, and audio-reactive applications. The adjustable gain allows for flexibility in matching signal levels to various input requirements. It's easy to use, requiring only ground, power (2.4-5VDC), and an output connection. For projects involving speakers, an external audio amplifier is recommended.
ADAFRUIT 1063 Electret Microphone Amplifier Specifications:
- Microphone: 20-20KHz electret microphone
- Amplifier IC: Maxim MAX4466
- Adjustable Gain: 25x - 125x
- Power Supply: 2.4-5VDC
- Output Voltage: Up to 5Vpp
- DC Bias: VCC/2
- Application: Voice changers, audio recording, audio-reactive projects
Buy the 1063 ADAFRUIT Electret Microphone Amplifier | myMectronic
Purchase the Adafruit Electret Microphone Amplifier securely and reliably for your next project.
Buy Now
Frequently Asked Questions
Where can I buy ADAFRUIT 1063?
You can click on the BUY or RFQ button to purchase 1063 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 1063?
You can download the 1063 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 1063?
ADAFRUIT
