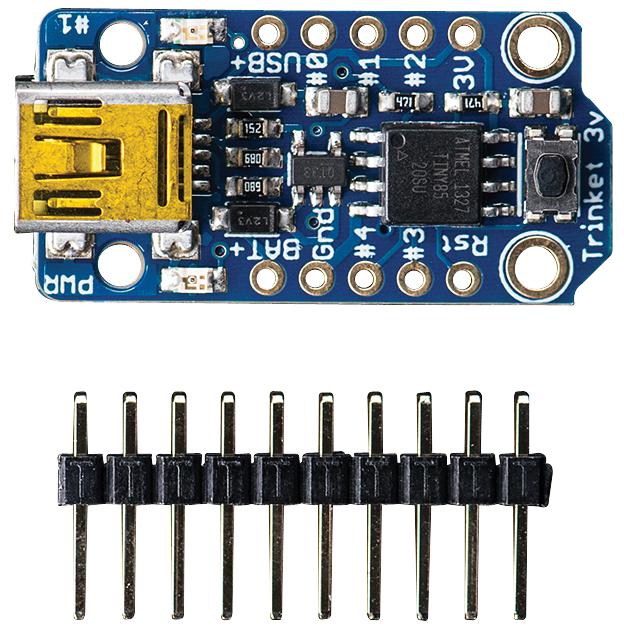

ADAFRUIT 1500 Microcontroller Board
The Adafruit Trinket 1500 is a compact, low-cost microcontroller board powered by an ATtiny85 chip operating at 3.3V. It features 8KB of flash memory, 512 bytes of SRAM, and 512 bytes of EEPROM. It includes an internal 8MHz oscillator and a USB bootloader with an LED indicator, enabling programming via Micro USB. The board has five GPIO pins—two shared with USB, three independent including one analog and two PWM. Suitable for sensors and 3V logic devices, it supports powering via USB or batteries, with a reset button for easy control. Note: lacks serial debugging port, and USB v3 ports may have recognition issues.
ADAFRUIT 1500 Microcontroller Board Specifications:
- Microcontroller: ATtiny85
- Flash Memory: 8KB
- SRAM: 512 bytes
- EEPROM: 512 bytes
- Operating Voltage: 3.3V
- Clock Speed: 8MHz internal, 16MHz in software
- Power Input: USB or external battery with automatic switching
- Power Regulation: 3.3V or 5V regulator, 150mA capacity, reverse polarity, thermal and current limit protection
- USB: Micro USB port for power and programming
- GPIO Pins: 5 (including analog inputs and PWM outputs)
- Bootloader: USB with LED indicator, programmable via Arduino IDE
- Dimensions: Compact size suitable for small projects
- Additional Features: Reset button, mounting holes, I2C/SPI support
Buy the Adafruit Series Trinket Microcontroller: 1500
Order the Adafruit Trinket 1500 microcontroller online today and experience a versatile, low-cost, and compact solution for your embedded projects. Designed around the ATtiny85, it offers 8KB flash, 512 bytes SRAM, and supports USB programming via an easy-to-use bootloader with LED indicator. Perfect for sensors, IoT, and small devices, it operates at 3.3V or 5V with onboard regulators and offers 5 GPIO pins including analog and PWM outputs. Its small size, mounting holes, and dual power options make it ideal for embedded systems, hobby projects, and prototypes. Power and reset features facilitate seamless operation and updates. Whether developing wearable tech or automation systems, this microcontroller ensures reliable, efficient performance, and easy integration through Arduino IDE support. Buy online now and elevate your electronics projects.
Get Adafruit Trinket 1500 today—built for precision and long-lasting durability in compact projects.
Frequently Asked Questions
Where can I buy ADAFRUIT 1500?
You can click on the BUY or RFQ button to purchase 1500 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 1500?
You can download the 1500 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 1500?
ADAFRUIT
