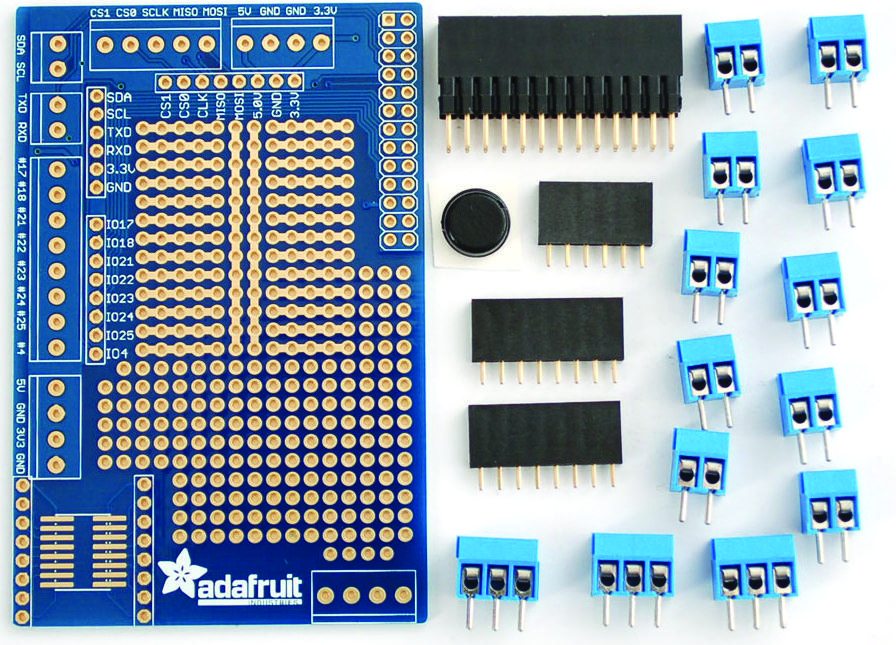

ADAFRUIT 801 Prototyping Pi Plate
The 801 prototyping Pi Plate kit is an add-on for the Raspberry Pi, designed to facilitate prototyping and development. It features a large dual-style prototyping area, with half breadboard-style and half perfboard-style sections, allowing easy wiring of DIP chips, sensors, and other components. All GPIO, I2C, SPI, and power pins are broken out to 0.1-inch strips along the edges for straightforward connections, and labeled 3.5mm screw terminal blocks enable semi-permanent wiring of sensors and LEDs. Additionally, there is a 4-position terminal block for general wiring, and a dedicated SOIC surface-mount chip breakout area beneath the metal connectors for chips that don't come in DIP format. The plate includes a bumper to align securely over the Raspberry Pi Ethernet port, and features symmetric 2x13 GPIO headers for flexible orientation. Suitable for hobby and educational projects, the kit contains the PCB, various headers, terminal blocks, and a bumper to ensure proper fit.
ADAFRUIT 801 Prototyping Pi Plate Specifications:
- Prototyping area: dual-section, breadboard and perfboard style
- GPIO/ I2C/ SPI/ Power pins broken out to 0.1" strips
- Labeled 3.5mm screw-terminal blocks for sensors and LEDs
- 4-position terminal block for general wiring
- Dedicated SOIC surface-mount chip breakout area
- Includes bumper for secure attachment over Ethernet port
- Symmetric 2x13 GPIO headers for flexible orientation
- Kit comprises PCB, headers, terminal blocks, and bumper
- Dimensions optimized for Raspberry Pi enclosure fit
- Designed for easy assembly, soldering required, beginner-friendly
Buy the Adafruit Series Prototyping Pi Plate: 801
Enhance your Raspberry Pi projects with the Adafruit Prototyping Pi Plate kit, an essential tool for hobbyists and educators. Featuring a dual prototyping area, GPIO pins broken out to easy-to-use strips, and screw-terminal blocks, this kit simplifies wiring and component connections. Its dedicated SOIC surface-mount breakout and secure bumper provide versatile prototyping options. Perfect for developing custom circuits, learning soldering skills, or experimenting with sensors, the kit includes all necessary parts for quick assembly, making it ideal for both beginners and experienced makers.
Get Adafruit 801 prototyping Pi Plate today—designed for easy soldering, versatile development, and educational projects with extensive GPIO access.
Frequently Asked Questions
Where can I buy ADAFRUIT 801?
You can click on the BUY or RFQ button to purchase 801 from an authorized ADAFRUIT distributor.
How do I troubleshoot issues or seek technical support for part 801?
You can download the 801 datasheet or visit the ADAFRUIT website for support.
Who is the manufacturer of 801?
ADAFRUIT
