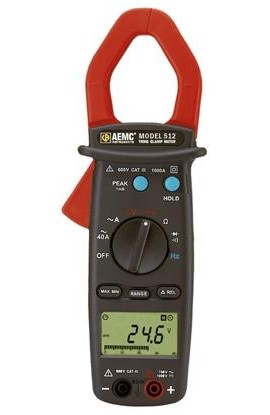

AEMC Instruments 512 Clamp-On Meter
The AEMC 512 Clamp-On Meter is a professional, versatile electrical testing instrument with auto-ranging features, measuring AC current up to 1000A, AC/DC voltage up to 750V/1000V, resistance up to 4000Ω, and frequency capabilities. As a true RMS device, it ensures accurate readings on non-linear loads, with functions for continuity, diode testing, peak capture, and data hold. Its large 4000-count display and analog bargraph enhance readability. Suitable for troubleshooting in commercial, industrial, residential, and HVAC applications, it includes test leads and a soft pouch for ease of use.
AEMC Instruments 512 Clamp-On Meter Specifications:
- Jaw Opening: 1.575" (40mm)
- Conductor Size: one 750kemil cable or two 350kemil cables
- AC Current Range: 0.05 to 1000A, Resolution: 0.01A, 0.18 and 1A, Accuracy: 1.9% of Reading
- AC Voltage Range: 0.5 to 750V, Resolution: 0.1V and 1V, Accuracy: 1.2% of Reading
- DC Current Range: 1A to 1000A, Resolution: 0.01A, 0.14 and 1A, Accuracy: 2.5% of Reading
- DC Voltage Range: 0.2 to 10000V, Resolution: 0.1V and 1V, Accuracy: 0.75% of Reading
- Resistance: 0.2 to 40000Ω, Accuracy: 1% of Reading
- Frequency: 4kHz, Resolution: 1Hz, Accuracy: 0.1% of Reading, usable from 20Hz to 10kHz
- Power Supply: 9V alkaline battery (included)
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Display: 4000-count LCD with analog bargraph
- Includes: test leads, soft carrying pouch, 9V battery
Buy the AEMC Series 512 Clamp-On Meter: 512
Purchase the AEMC 512 Clamp-On Meter online today and experience reliable, professional-grade electrical testing. Its auto-ranging, true RMS accuracy, and versatile functions make troubleshooting efficient across industrial, commercial, and residential applications. Included test leads and soft pouch ensure convenience, while its large display and analog bargraph provide easy readability in any environment. Whether diagnosing motor issues, power monitoring, or non-linear load analysis, this clamp meter offers precise measurements and durability for long-term use. Order now to enhance your electrical testing capabilities.
Get AEMC 512 clamp-on meter today—built for precise electrical measurements with advanced true RMS technology.
