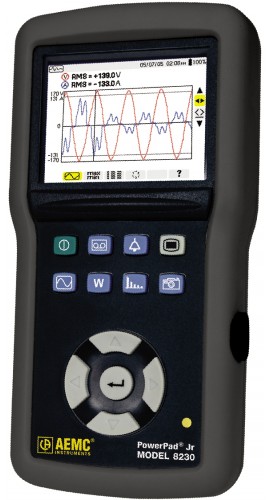

AEMC Instruments 8230wSR193BK Power Quality Analyzer
The AEMC PowerPad Jr. Model 8230 is a compact single-phase power quality analyzer ideal for technicians and engineers. It measures and records key parameters including voltage up to 660 V RMS or DC, current up to 6500 A AC or 1400 A DC (probe dependent), harmonics up to the 50th order, and energy consumption like kWh and kVARh. The device offers features such as real-time waveform display, trend analysis, inrush current capture, and extensive data storage. It supports USB data transfer, and includes DataView® software for detailed analysis, reporting, and configuration. Its robust design ensures reliable performance in demanding environments, making it a versatile tool for power diagnostics and quality assurance in electrical systems.
AEMC Instruments 8230wSR193BK Power Quality Analyzer Specifications:
- Voltage (TRMS): Phase-to-Phase 660V, Phase-to-Neutral 600V
- Current (TRMS): MN Clamp 5mA to 6A/120A or 2 to 240A, MR Clamp 10 to 1000A, SR Clamp 3 to 1200A, MiniFlex 10 to 1000A, AmpFlex 10 to 6500A
- Frequency: 40 to 70Hz
- Power Measurement: kW, KVAR, PE, DPF, kWh, KVARh, KVAh, K-Factor, Flicker, Harmonics, Phase Shift, Phase Rotation
- Harmonics: THD-R, THD-F, individual harmonic values up to 50th, %for volts and amps
- Sampling Frequency: 256 samples/cycle
- Data Storage: 1.5MB for waveforms, trends, alarms, and inrush waveform
- Display: 320 x 240 color LCD with adjustable brightness and contrast
- Power Source: NiMH rechargeable battery, >8 hrs operation, >240 hrs with display off
- Dimensions: 8.3 x 4.3 x 2.4 inches (211 x 108 x 60 mm)
- Weight: 1.9 lbs (0.88 kg)
- Safety Rating: EN 61010, 600V CAT II, IP54, Pollution Degree 2
- Communication: Optically isolated USB port for data transfer
- Additional features: Trend recording, harmonic analysis, real-time waveform display, configurable reports
Buy the Buy GEER Power Quality Analyzer Part Number 8230wSR193BK Online
Purchase the GEER PowerPad Jr. Model 8230 online today for comprehensive power quality diagnostics. It captures voltage, current, harmonics, and energy data, with real-time waveform display, trend analysis, and extensive data storage. Its robust design and user-friendly software ensure precise measurements and easy report generation. Ideal for electricians, engineers, and technicians, this analyzer enhances troubleshooting and ensures optimal power system performance. Get fast delivery and professional-grade tools to support your electrical inspection and maintenance tasks.
Order your GEER Series PowerPad Jr. 8230 power quality analyzer today and enhance your electrical diagnostics with reliable, detailed data recording.
Frequently Asked Questions
Where can I buy AEMC Instruments 8230wSR193BK?
You can click on the BUY or RFQ button to purchase 8230wSR193BK from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 8230wSR193BK?
You can download the 8230wSR193BK datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 8230wSR193BK?
AEMC Instruments
