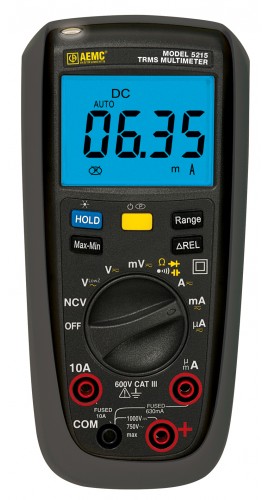

AEMC Instruments 5215 Digital Multimeter
The AEMC 5215 multimeter is a compact, user-friendly testing device with a large backlit display and non-contact voltage detection. It measures AC/DC voltage, resistance, capacitance, frequency, and duty cycle with high precision, including 0.01mV resolution. It features auto-ranging, data hold, relative measurements, and overload protection up to 8,000V. The device supports multiple measurement modes, with extended battery life via sleep mode, and includes a flashlight and mounting options. Ideal for electrical diagnostics, it offers reliability and versatile functionality for professional technicians and hobbyists.
AEMC Instruments 5215 Digital Multimeter Specifications:
- True RMS measurement capability
- AC Bandwidth: 1000Hz
- Display: 4000 or 6000 counts with bargraph
- Auto/Manual Ranging and Range Select
- Voltage AC/DC: 600V/750V AC, 1000V DC with 0.01mV resolution
- Resistance: 40MΩ to 60MΩ, 6 ranges, 0.10Ω resolution
- Frequency/Duty Cycle: up to 3kHz, 3 ranges
- Capacitance: 100mF with 6 ranges, 0.01nF resolution
- Temperature measurement: -20°C to 760°C (-4°F to 1400°F)
- Continuity with buzzer, Diode test, LowZ feature
- Display Hold, Auto Power Off, Backlight, Flashlight
- Protection Index: CAT III 600V, Overload protection up to 8000V
- Power Supply: 2x 1.5V AA batteries, 500 hrs battery life
- Drop resistant up to 2 meters, Double Insulated, 3-year warranty
Buy the AEMC 5215 – Reliable Multimeter for Industrial Applications
Enhance your electrical testing toolkit with the AEMC 5215 digital multimeter, offering a large backlit display, non-contact voltage detection, and precise measurement capabilities. It supports AC/DC voltage, resistance, capacitance, frequency, and duty cycle measurements with high-resolution 0.01mV accuracy. Features include auto-ranging, data hold, relative measurements, overload protection up to 8,000V, and extended battery life with sleep mode. Its rugged design, multiple mounting options, flashlight, and versatile functions make it perfect for professionals and hobbyists in industrial, electrical, and maintenance applications.
Buy AEMC 5215 multimeter now and experience unmatched reliability and performance, ideal for electrical diagnostics, featuring non-contact voltage detection and extensive measurement options.
Frequently Asked Questions
Where can I buy AEMC Instruments 5215?
You can click on the BUY or RFQ button to purchase 5215 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 5215?
You can download the 5215 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 5215?
AEMC Instruments
