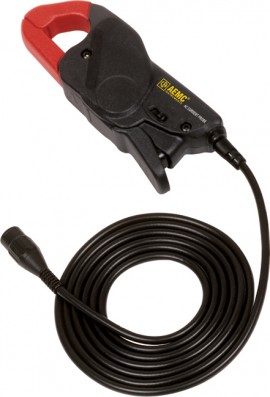

AEMC Instruments MN291 AC Current Probe
The MN291 is a versatile AC current probe designed for general-purpose electrical measurements across residential, commercial, and industrial settings. Its compact, lightweight design features a large jaw opening capable of accommodating conductors up to 250 MCM, making it suitable for use in breaker panels, HVAC systems, and industrial loads. It provides an accurate voltage output proportional to AC current, with a frequency response from 40Hz to 10kHz, ensuring reliable performance for a wide range of measurement tasks. Included integral leads with banana plug termination allow seamless connection to digital multimeters, recorders, and oscilloscopes. Built with double insulation and UL approval, the probe offers safety and durability for demanding environments.
AEMC Instruments MN291 AC Current Probe Specifications:
- Measurement Range: 0.5 to 240A
- Frequency Response: 40Hz to 10kHz
- Output Signal: 100mV DC per AC Ampere
- Jaw Opening: accommodates conductors up to 250 MCM
- Maximum Conductor Size: 0.83 Inch (20mm)
- Dimensions: 5.47 x 2.00 x 1.18 inches (139 x 51 x 30mm)
- Material: Polycarbonate UL94VO flame retardant, double insulated construction
- Operating Temperature: 14°F to 85°C (-10°F to 185°F)
- Storage Temperature: -40°F to 70°C
- Operating Humidity: 0 to 90% RH
- Safety Certification: UL, CE
- Protection: IP40
- Lead Length: 1.5 meters with banana plugs
- Maximum Voltage: 600V CAT III
Buy the ElectroTech MN291 – Reliable AC Current Probe for Industrial Applications
Order the ElectroTech MN291 AC current probe online today to ensure precise measurements in industrial, commercial, or residential electrical systems. Its large jaw opening fits conductors up to 250 MCM, making it ideal for breaker panels, HVAC, and load monitoring. The compact design, UL approval, and double insulation guarantee safety and durability in demanding environments. With a frequency response from 40Hz to 10kHz and an output of 100mV per ampere, this probe provides accurate, reliable data across various measurement tasks. Easy to connect with integral leads and banana plugs, it’s your essential tool for electrical diagnostics.
Buy ElectroTech MN291 now and experience unmatched reliability and performance in electrical measurements for industrial, commercial, and residential settings.
Frequently Asked Questions
Where can I buy AEMC Instruments MN291?
You can click on the BUY or RFQ button to purchase MN291 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part MN291?
You can download the MN291 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of MN291?
AEMC Instruments
