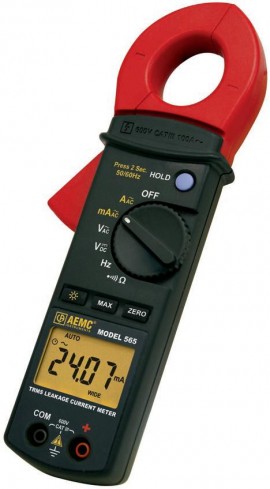

AEMC Instruments 565 Leakage Current Meter
The TRMS Clamp-On Leakage Current Meter is designed for precise measurement of low AC currents, primarily leakage in ground conductors. It features high sensitivity, detecting currents as low as 0.1mA, and measures up to 100A AC. Capable of testing AC/DC voltage, resistance, and continuity, this ergonomic device provides accurate diagnostics with hold, max, zero, and filter functions. Its compact jaw accommodates conductors up to 26mm diameter, making it ideal for electrical safety, ground fault detection, and industrial troubleshooting in various electrical environments.
AEMC Instruments 565 Leakage Current Meter Specifications:
- AC Current (TRMS, Auto-Ranging): 60mA to 100A with high accuracy
- Resolution: 60mA, 600mA, 10A, 100A, 1.2% to 2.5% of reading
- AC Voltage (TRMS): 600V, accuracy 1.0% of reading
- DC Voltage: 600V, accuracy 1.0% of reading
- Resistance: up to 1kΩ with 2.5% accuracy
- Continuity: Audible buzzer activates below 35Ω
- Frequency: 0.1Hz to 100Hz, with ±0.5% accuracy
- Jaw Opening: 1.10" (28mm), con ductor size: 1" (26mm)
- Power Source: Two AAA batteries, included
- Features: Hold, Max, Zero, Filter, Backlight display, Safety compliant with VDE 0404
- Includes: Test leads, carrying case, batteries, user manual
Buy the AEMC Series 565 Clamp-On Leakage Current Meter: 565
Purchase the AEMC Series 565 Clamp-On Leakage Current Meter online for accurate measurement of low AC leakage currents up to 100A. This versatile device measures AC and DC voltage, resistance, and continuity while providing advanced diagnostic features like hold, max, zero, and filter functions. Its ergonomic design with a compact jaw fits conductors up to 26mm, making it suitable for electrical safety testing, ground faults, industrial troubleshooting, and compliance verification. Buying online ensures fast delivery and competitive pricing for your electrical testing needs.
Order your AEMC Series 565 Clamp-On Leakage Current Meter today and ensure precise ground fault testing for reliable electrical safety.
Frequently Asked Questions
Where can I buy AEMC Instruments 565?
You can click on the BUY or RFQ button to purchase 565 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 565?
You can download the 565 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 565?
AEMC Instruments
