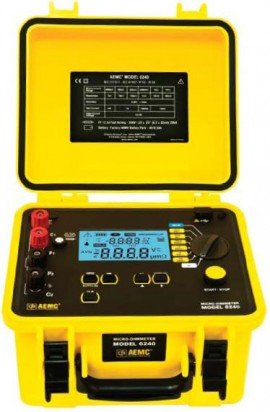

AEMC Instruments 6240 Resistance Meter
The AEMC 6240 Ohmmeter is a highly accurate resistance measurement device ideal for testing resistive and inductive materials. It supports up to 99 stored test results and features a large, backlit multifunction display showing resistance, test current, and voltage. Utilizing four-terminal Kelvin measurement, it eliminates lead resistance errors, providing reliable low resistance readings from 5 µΩ to 400 Ω. The device offers selectable test currents from 1 mA to 10 A, overload protection, and automatic zeroing. Its rechargeable NiMH battery allows up to 850 tests per charge, making it perfect for ground, motor, transformer, and electrical connection testing, with software capabilities for detailed analysis.
AEMC Instruments 6240 Resistance Meter Specifications:
- Range: 5 µΩ to 400 Ω
- Accuracy: +0.25% of reading +2 digits
- Resolution: 1 pΩ
- Test Current: 1 mA to 10 A
- Memory: Stores up to 99 test results
- Power Source: Rechargeable 6V, 85Ah NiMH battery pack (included)
- Display: Large multi-line backlit screen
- Features: Four-terminal Kelvin measurement, overload and fuse protection, automatic zeroing, reverse polarity switch
- Dimensions: Not specified
- Standards: Complies with international safety standards
Buy the AEMC Series 6240 Resistance Meter: 6240
Order the AEMC Resistance Meter online today for reliable and precise low resistance measurements. Featuring Kelvin method technology, multiple resistance ranges, and easy-to-read large backlit display, this device ensures accurate results for testing ground connections, motor and transformer resistance, and electrical contacts. It supports up to 99 stored results, includes a rechargeable NiMH battery, and comes with DataView software for data analysis and report generation. Perfect for electrical troubleshooting, maintenance, and quality assurance in industrial environments.
Get AEMC 6240 today—built for precise low resistance testing with advanced data storage and software capabilities.
Frequently Asked Questions
Where can I buy AEMC Instruments 6240?
You can click on the BUY or RFQ button to purchase 6240 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 6240?
You can download the 6240 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 6240?
AEMC Instruments
