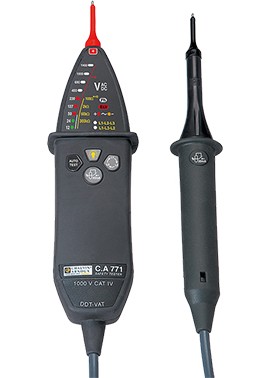

AEMC Instruments CA771 Voltage Absence Tester
The AEMC CA771 is an essential testing tool for electricians, designed for verifying de-energized conditions, detecting stray voltages, and performing phase and continuity tests. It features full autotest capabilities, voltage detection from 12V to 1000V AC and 12V to 1400V DC, with a frequency range of 16.67Hz to 800Hz. Its robust IP65 rating allows outdoor use, and the device includes removable test probes, LED indicators, and automatic safety features. Suitable for industrial, commercial, and residential electrical inspections, it ensures compliance with standards like EN 61243-3 and IEC 61010 for CAT IV environments.
AEMC Instruments CA771 Voltage Absence Tester Specifications:
- Voltage Detection Range: 12V to 1000V AC / 12V to 1400V DC
- Frequency Range: 16.67Hz to 800Hz
- Impedance: >500kΩ
- Max. Peak Current: 3.5mA RMS
- Protection: IP65, suitable for indoor and outdoor use
- Environmental Range: -22°F to +140°F (Type S extended climatic class)
- Dimensions: approximately 9 x 2.4 x 1.5 inches (228 x 60 x 39 mm)
- Weight: approximately 0.8 lbs (350 g)
- Standards: IEC 61243-3:2009, EN 61243-3:2010, IEC 61010
- Battery Life: over 5,000 measurements
- Display: LEDs + backlit digital display
- Features: Auto-test, stray voltage detection, phase rotation, RCD trip testing, removable probes
Buy the AEMC Series CA771 Voltage Absence Tester: CA771
Purchase the AEMC CA771 Voltage Absence Tester online today to ensure safe and accurate testing for electrical installations. Designed with full auto-test capabilities, stray voltage detection, and dual AC/DC voltage measurement, it is perfect for professional electricians working in diverse environments. Features like IP65 protection, removable probes, and a digital LED display make it ideal for indoor and outdoor use. With high durability and compliance with safety standards including IEC 61243-3 and IEC 61010, this device guarantees precise and safe testing every time. Order now for fast delivery and peace of mind in every electrical inspection.
Buy AEMC CA771 voltage absence tester now and experience reliable electrical safety testing in extreme conditions and challenging environments.
