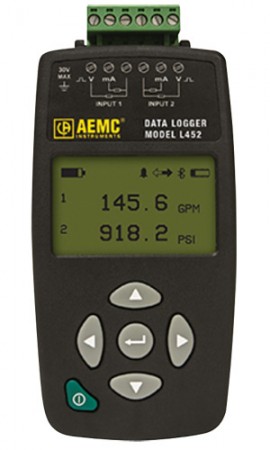

AEMC Instruments L452 Data Logger
This data logger supports wireless Bluetooth and USB communication for data transfer and configuration. It features multiple configurable channels for current and voltage measurements (including 4-20mA, ±100mV, ±1V, ±10V), event counting, dry contact closure detection, and logical level (pulse) detection. The device provides real-time measurement display on its LCD screen, and the front panel includes a user-friendly interface with multilingual menus. It can record events such as machine run time and store data for analysis. The included DataView software enables data storage, real-time visualization, analysis, and report generation from custom templates. The device operates on rechargeable batteries or via USB power, has a magnetized rear panel for versatile placement, and allows keypad locking through the software.
AEMC Instruments L452 Data Logger Specifications:
- Channels: 2 configurable inputs for DC voltage, current, pulse, and event detection
- Measurement Range: DC Voltage ±100mV, ±1V, ±10V; DC Current 0.01mA to 200mA
- Sample Rate: 5 samples/sec for voltage/current, 100 samples/sec for pulse/event
- Memory: 32MB internal Flash, up to 1024 sessions, 16 million samples total
- Connectivity: Bluetooth 2.1 Class 1, USB 2.0
- Power: Internal rechargeable NiMH batteries (charges via USB), operating up to 180 days depending on use
- Dimensions: 1.275 x 2.578 x 5.413 inches (82.4 x 65.5 x 137.5 mm)
- Weight: 190 grams (with batteries)
- Environmental Resistance: IP 40 (instrument only), IP 20 with terminal strip
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Humidity: 16% to 85%
Buy the Buy TUM Data Logger Model L452 Online
Purchase the TUM Data Logger Model L452 online today and enjoy precise wireless data measurement with Bluetooth and USB connectivity. This versatile device can record multiple parameters including voltage, current, pulse, and event counts. Its robust internal memory and rechargeable batteries ensure reliable operation over extended periods. The user-friendly front panel interface allows easy setup and real-time viewing, while DataView software offers comprehensive data analysis, report generation, and remote configuration options. Ideal for industrial monitoring applications, get yours online now for seamless data logging and measurement.
Buy TUM Data Logger Model L452 now and experience unmatched reliability and versatile wireless measurement capabilities.
