AEMC Instruments MN261 Datasheet & Stock

AEMC MN261 Offers

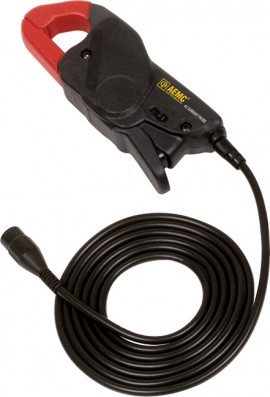

The MN261 is a high sensitivity probe with voltage outputs (100mV/A and 10mV/A) and combine two switch-selectable ranges of 20A and 200A, thus permitting accurate measurements at low and high levels. The MN261 is designed for oscilloscopes and other BNC terminated instruments. It has two performing ranges (20A, 200A) both voltage output (100mV/A and 10mV/A) and 40Hz to 10kHz response.

Features

Small, compact size
Measurement range of 0.1 to 24A, 0.5 to 240A AC
Large jaw opening accommodates conductors up to 250MCM
Designed for DMMs, loggers, recorders and oscilloscopes
40Hz to 10kHz response
100mV AC/A AC – 10mV AC/A AC output signals
Designed to EN 61010, 600V Cat. III safety standard
UL approved for Canada and United States
Double Insulation
CE Mark


Applications
Measuring in breaker panels
Industrial loads
HVAC/R
Residential and commercial sites
5A secondary current transformers (CTs) monitoring
