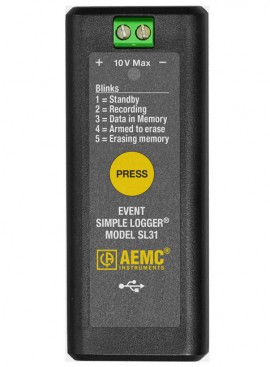

AEMC Instruments SL31 Datasheet & Stock

AEMC SL31 Offers

Features

Simple 1 button operation
Quick 2 wire input connection
User configurable scaling, units of measure and recording length
Stores up to 4 million measurements
Data analysis software included
Software provides real-time trend graph display, data download, analysis and report generation
The input is 0 to 5 VDC facilitated by two screw terminals
Sample rate is 16/sec with a storage rate of once per second of the average of all the samples
Scaling units of measure and recording length can be set through the software
Real-time graphs can be displayed, downloaded data can be analyzed, and reports printed
The front panel LED alerts the operator of the logger's status


Applications

Circuit design troubleshooting
Sensor monitoring
Power supply profiling
Finds sags and surges
Track energy usage
Count events and records
Determine event sequencing
