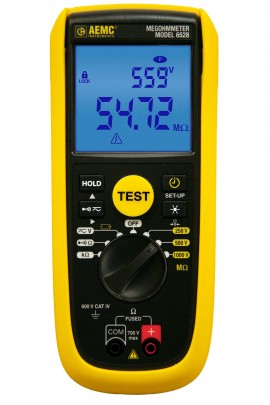

AEMC Instruments 6528 Insulation Tester
The AEMC 6528 insulation tester is a versatile and durable device ideal for maintenance and repair operations on electrical equipment such as motors and cables. Featuring selectable test voltages of 250, 500, and 1000 V, it combines basic digital multimeter functions—voltage, continuity, and resistance measurements—with advanced features like a dual-line display for simultaneous insulation resistance and test voltage readings. The device incorporates a relative resistance comparison mode, two-color backlighting for easy alarm detection, shockproof casing for durability, programmable alarm thresholds, and an automatic power-off function, making it suitable for electrical maintenance, plant upkeep, and utility inspections.
AEMC Instruments 6528 Insulation Tester Specifications:
- Model: 6528
- AC/DC Voltage Measurement Range: 700 Vac, 700Vac-+oc
- Accuracy: ±(1%R + 1ct) for AC/DC; ±(1.2%R + 1ct) for AC+DC
- Input Impedance: 25MQ
- Insulation Test Voltage/Resistance Range: 50V - 0.010MΩ to 420.0MΩ, 100V - 0.020MΩ to 420.0MΩ, 250V - 0.050MΩ to 4200MΩ, 500V - 0.100MΩ to 4200MΩ, 1000V - 0.20MΩ to 11.00GΩ
- Measurement Accuracy: ±(1.5%R + 10ct) for 400/40MΩ; ±(4%R + 10ct) for 4.26Ω; ±(10%R + 10ct) for 1160Ω (1000V range)
- Continuity Range: 0 to 400, Accuracy: 1.2%R + 3ct, Resolution: Max 0.010
- Resistance Range: 0 to 420kΩ, Accuracy: ±(1.2R + 3ct), Resolution: Max 0.19
- Display: LCD with two-color backlight
- Power Supply: 6 x AA Alkaline batteries, approximately 2000 measurements in Ω
- Dimensions: 8.54 x 3.54 x 2.44 inches
- Weight: 1.68 lbs
- Operating Temperature: -10°C to +50°C, 90% RH
- Safety Rating: IEC/EN 61010-1, 600V CAT IV, CE marked
- Ingress Protection: IP40 with leads connected
Buy the Buy AEMC Insulation Tester Part Number 6528 Online
Purchase the AEMC 6528 insulation tester online and enjoy a reliable, durable device perfect for electrical maintenance, motor testing, and inspection tasks. It offers selectable test voltages of 250, 500, and 1000 V, along with basic digital multimeter functions including voltage, continuity, and resistance measurements. Its dual-line display provides clear visibility of insulation resistance and real-time test voltage simultaneously, facilitating accurate testing. Designed for durability with a shockproof casing, the device features programmable alarm thresholds, a two-color backlight indicator, and an automatic power-off feature to maximize battery life, ensuring efficient and safe electrical inspections.
Buy AEMC 6528 insulation tester now and experience reliable electrical testing with selectable voltages, dual display, durability, and programmable alarms.
Frequently Asked Questions
Where can I buy AEMC Instruments 6528?
You can click on the BUY or RFQ button to purchase 6528 from an authorized AEMC Instruments distributor.
How do I troubleshoot issues or seek technical support for part 6528?
You can download the 6528 datasheet or visit the AEMC Instruments website for support.
Who is the manufacturer of 6528?
AEMC Instruments
