AEMC 213521 Ground Resistance Tester

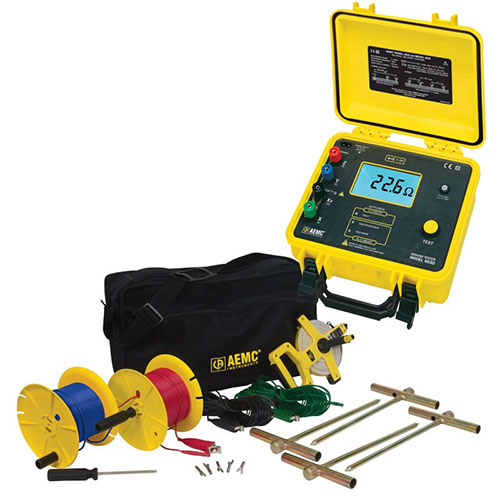

The AEMC Model 4620 KIT-500FT is a durable digital ground resistance tester designed for precise measurements of ground resistance and soil resistivity. It features an auto-ranging function that automatically selects the optimal measurement range from 0 to 2000 ohms, ensuring accuracy. Its rugged construction withstands shocks, vibrations, and drops, making it suitable for field use. The device can perform over 2000 measurements on a single battery charge and effectively rejects electrical interference, providing reliable results in challenging environments. It includes a soft carry case, batteries, and user manual for easy operation.
AEMC 213521 Ground Resistance Tester Specifications:
- Measurement Range: 0 to 2000 ohms
- Measurement Resolution: 0.001 ohms
- Voltage: <42V peak
- Square Wave Frequency: 128Hz
- Test Current: 0.1mA
- Measurement Accuracy: ±2% of Reading + 2%
- Resistivity Measurement Range: 200 to 19990 ohms-m
- Fall-of-Potential Method: Yes
- Response Time: Stabilized measurement
- Withstanding Voltage: 250Vac or 100Vdc
- Power Source: Eight C cell batteries; 120/230V 50/60Hz power adapter
- Battery Life: Over 2000 measurements
- Battery Type: Alkaline or NiMH rechargeable pack
- Fuse Protection: 0.18A, 30kA interrupt capacity
- Durability: Shock, vibration, and drop resistant
- Additional features: Auto-ranging, interference rejection, large backlit display
Buy the Buy AEMC Ground Resistance Tester Part Number 213521 Online
Purchase the AEMC Series4620 digital ground resistance tester online to ensure accurate and reliable measurements of ground resistance and soil resistivity. With its auto-ranging feature, it automatically selects the best measurement range for precise results. Built for durability, it withstands shocks, vibrations, and drops, making it ideal for field use. The device rejects high electrical interference, providing dependable readings even in challenging environments. It includes a soft case, batteries, and manual, ready to support your maintenance and testing needs.
Order your AEMC Series4620 ground resistance tester today and experience reliable, accurate measurements designed for demanding environments.
Frequently Asked Questions
Where can I buy AEMC 213521?
You can click on the BUY or RFQ button to purchase 213521 from an authorized AEMC distributor.
How do I troubleshoot issues or seek technical support for part 213521?
You can download the 213521 datasheet or visit the AEMC website for support.
Who is the manufacturer of 213521?
AEMC
