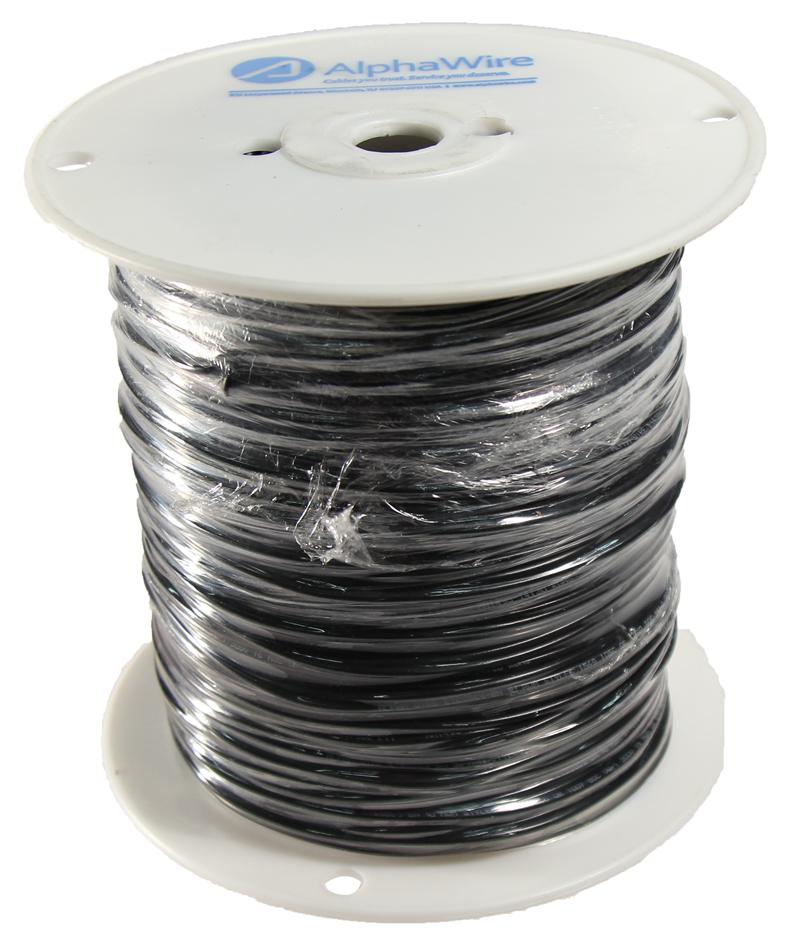

ALPHA WIRE 1632BK005 Hook Up Wire
The ALPHA WIRE 1632 BK005 is a robust hook-up wire designed for a wide range of industrial and commercial applications. Constructed with 20 AWG stranded conductors and insulated with durable EPR rubber, this wire offers excellent flexibility and resistance to abrasion. Its temperature range of -30°C to 90°C makes it suitable for use in demanding environments. Compliant with RoHS directives, this wire ensures environmentally responsible operation. Commonly used in appliance wiring, control panels, and automotive applications, the 1632 BK005 provides reliable performance and longevity.
ALPHA WIRE 1632BK005 Hook Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 20 (41/36) AWG TC
- Insulation Wall: 0.040" Nom.
- Insulation Material: EPR Rubber
- Insulation Diameter: 0.118+/- 0.006 inch
- Color(s): BLACK, RED
- Temperature Range: -30 to 90°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 8.1 Lbs, Maximum
- Voltage Rating: 1500 VRMS
- Inductance: 0.09 µH/ft, Nominal
- Conductor DCR: 11.1 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 12 x 4.5 x 3.5 inches
- Packaging 500 FT: 6.5 x 6 x 1.9 inches
- Packaging 100 FT: 6.5 x 2 x 1.9 inches
- SVHC Compliant: Yes
- RoHS Compliant: Yes
Buy the 1632 BK005 ALPHA WIRE Hook Up Wire | myMectronic
Purchase the ALPHA WIRE 1632 BK005 securely and efficiently for your project needs.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 1632BK005?
You can click on the BUY or RFQ button to purchase 1632BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 1632BK005?
You can download the 1632BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 1632BK005?
ALPHA WIRE
