ALPHA WIRE 18965CSL002 Control Cable
This high-quality cable features 20 AWG copper conductors with PVC insulation and a durable PVC jacket, suitable for industrial and electrical applications. It complies with UL, CSA, and CE standards, offering a voltage rating of 300 V and temperature range of -20°C to 80°C. Designed for reliable performance, the cable has a bend radius of 10 times its diameter and withstands pull tensions up to 44 lbs, making it ideal for control, instrumentation, and automation systems. RoHS and REACH compliant, ensuring environmental safety and regulatory adherence.
ALPHA WIRE 18965CSL002 Control Cable Specifications:
- Conductor Size: 20 AWG (7/28) TC copper
- Insulation: 0.016 inch PVC wall
- Jacket: 0.020 inch PVC wall, color slate
- Voltage Rating: 300 V
- Temperature Range: -20°C to 80°C
- Bend Radius: 10 x Cable Diameter
- Pull Tension: 44 lbs maximum
- Capacitance: 30 pF/ft @1 kHz
- Inductance: 0.19 μH/ft
- Conductor Resistance: 10.2 Ω/1000 ft @20°C
- Conformance: UL Style 2509, CSA FT4, CE RoHS compliant
- Environmental: RoHS 2, REACH compliant, California Proposition 65

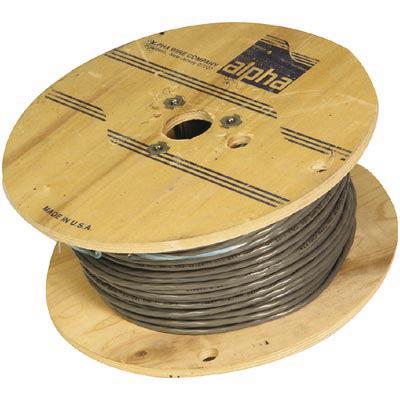

Buy the Alpha Wire 1896/5C – Reliable Control Cable for Industrial Applications
Order Alpha Wire 1896/5C control cable online today for reliable performance in industrial wiring, automation, and control applications. This high-quality cable features 20 AWG copper conductors with PVC insulation and jacket, ensuring durability and flexibility. Certified by UL, CSA, and CE for safety and compliance, it supports voltages up to 300 V and operates efficiently within a temperature range of -20°C to 80°C. Designed for easy installation with a bend radius of 10 times its diameter and withstands pull tensions of 44 lbs, making it ideal for industrial environments. Buy now for fast delivery and trusted quality.
Get Alpha Wire 1896/5C today—built for precision and long-lasting durability in industrial wiring and control systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 18965CSL002?
You can click on the BUY or RFQ button to purchase 18965CSL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 18965CSL002?
You can download the 18965CSL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 18965CSL002?
ALPHA WIRE
