ALPHA WIRE 18968CSL002 Unshielded Communication Cable
The 1896/8C SL002 is an 8-core unshielded cable with tinned copper conductors, PVC insulation, and a slate PVC jacket. It is ideal for audio, communications, networking, automation, security, and consumer electronics. The cable supports a maximum pull tension of 70 lbs, a nominal inductance of 0.19 μH/ft, and a nominal conductor resistance of 10.2 Ω per 1000 ft at 20°C. It complies with UL IEC standards, CE Low Voltage Directive, RoHS 2, and REACH, ensuring environmental safety and regulatory compliance for diverse industrial and electronic applications.
ALPHA WIRE 18968CSL002 Unshielded Communication Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 20 AWG (7/28) TC
- Insulation Wall Thickness: 0.016 inches (PVC)
- Jacket Wall Thickness: 0.020 inches (PVC)
- Jacket Color: Slate
- Cable Diameter: approximately 0.273 inches
- Temperature Range: -20°C to 80°C
- Maximum Pull Tension: 70 lbs
- Voltage Rating: 300 V
- Capacitance: 30 pF/ft @1 kHz
- Inductance: 0.19 μH/ft
- Conductor Resistance: 10.2 Ω/1000 ft at 20°C
- Minimum Bend Radius: 10 times cable diameter
- Properties: CSA, UL IEC 60332-1 Fire Test, RoHS 2 and REACH compliance

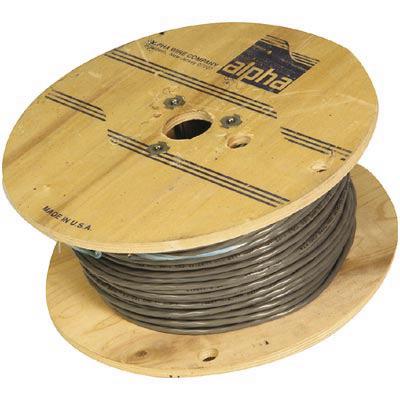

Buy the Buy Alpha Wire Part Number 1896/8C Online
Secure your electronic and communication setup with the Alpha Wire 1896/8C unshielded cable. Featuring PVC insulation, tinned copper conductors, and a durable slate jacket, this versatile cable is perfect for automation, security, audio, and network applications. It supports a maximum pull tension of 70 lbs, has excellent electrical properties with low inductance and resistance, and adheres to strict UL, CE, RoHS, and REACH standards. Order online now for fast delivery and trusted quality.
Order your Alpha Wire 1896/8C unshielded cable today and ensure reliable signal transmission for your automation, networking, or consumer electronics projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 18968CSL002?
You can click on the BUY or RFQ button to purchase 18968CSL002 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 18968CSL002?
You can download the 18968CSL002 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 18968CSL002?
ALPHA WIRE
