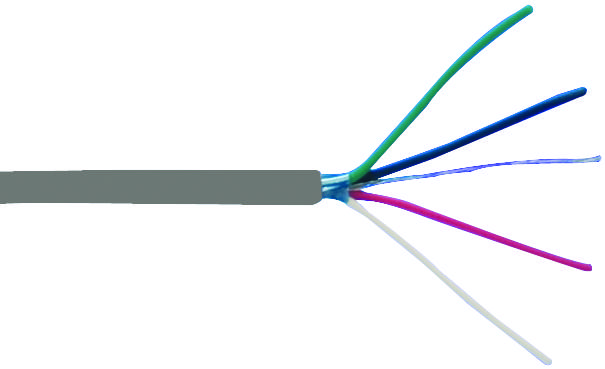

ALPHA WIRE 58119SL001 Shielded Control Cable
This shielded cable assembly features 22 AWG conductors with a durable PVC insulation wall, plenum rated, and conforms to UL, CSA, and CE standards. It has a voltage rating of 300 V and offers excellent electrical properties like a capacitance of 51 pF/ft at 1 kHz and a ground capacitance of 92 pF/ft. Designed for reliable performance in various industrial environments, it supports continuous lengths of 1000 ft or 500 ft with specified internal diameters and wall thicknesses, making it ideal for sensitive electronic and control applications requiring shielding and high safety standards.
ALPHA WIRE 58119SL001 Shielded Control Cable Specifications:
- Conductors: 22 AWG copper conductors with PVC insulation wall, 0.008 inch thick, plenum rated
- Jacket: PVC, 0.015 inch wall, plenum rated, color slate
- Shield: Alum/Mylar tape with 25% overlap, foil facing out, drain wire 24 AWG TC
- Operating temperature: -5°C to 75°C
- Voltage rating: 300 V AC
- Capacitance: 51 pF/ft @1 kHz
- Ground capacitance: 92 pF/ft @1 kHz
- Inductance: 0.17 μH/ft
- Conductor DCR: 15.2 Ω/1000 ft @20°C
- Shield DCR: 15.9 Ω/1000 ft @20°C
- Bend radius: 10× cable diameter
- Pull tension: 53 lbs maximum
- Lengths: 1000 ft and 500 ft spools, dimensions vary
- Certifications: UL, CSA International, CE Compliant, RoHS, REACH, California Proposition 65
Buy the Alpha Wire Series Shielded Cable: 22 AWG Plenum Rated UL CSA CE Approved
Purchase Alpha Wire’s shielded control cable online today for guaranteed quality and compliance. Designed for demanding industrial, control, and electronic applications, this 22 AWG cable features PVC insulation, a durable jacket, and effective shielding. Its UL, CSA, CE approvals, and RoHS compliance ensure high safety standards and environmental responsibility. Whether you need large spools of 1000 ft or 500 ft, this cable provides excellent electrical properties such as capacitance and inductance, ensuring optimal performance in control systems, instrumentation, and sensitive electronic devices across various industries.
Buy Alpha Wire 58119SL001 now and experience reliable shielding, high safety standards, and excellent electrical performance in industrial environments.
