ALPHA WIRE 18988CSL005 unshielded multi-core cable
The 1898/8C SL005 is a versatile 8-core unshielded cable with tinned copper conductors and a PVC insulator. It features a slate PVC jacket, supporting applications in audio, communication, networking, instrumentation, security, automation, consumer electronics, and portable devices. Its technical specs include a maximum pull tension of 101 lbs, a conductor DC resistance of 7.2 ohms per 1000 feet at 20°C, and a nominal inductance of 0.18 µH per foot. Designed for durability, it conforms to UL, CSA, CE, RoHS, and REACH standards, suitable for various electronic and industrial uses.
ALPHA WIRE 18988CSL005 unshielded multi-core cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 18 (16/30) AWG
- Insulation Wall Thickness: 0.016 inches, PVC
- Jacket Wall Thickness: 0.025 inches, PVC, Slate color
- Maximum Pull Tension: 101 lbs
- Voltage Rating: 300 V
- Capacitance: 33 pF/ft @ 1 kHz
- Inductance: 0.18 µH/ft
- DC Resistance: 7.2 Ω per 1000 ft at 20°C
- Temperature Range: -20°C to 80°C
- Bend Radius: 10X Cable Diameter
- Cable Lengths: 1000 ft, 500 ft, 100 ft
- Certification: UL, CSA, CE, RoHS, REACH compliant

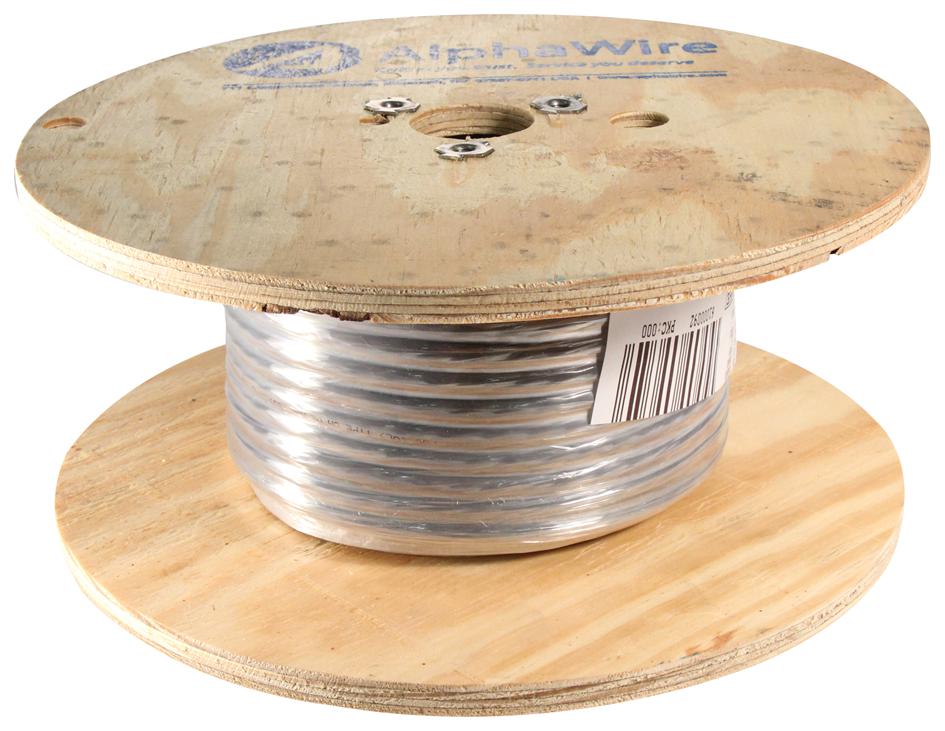

Buy the Buy Alpha Wire 1898/8C Part Number 18988CSL005 Online
Order Alpha Wire 18988CSL005 online today for reliable performance in audio, communication, automation, and instrumentation setups. This high-quality 8-core cable features tinned copper conductors, a durable PVC jacket, and supports applications requiring high flexibility and durability. With a maximum pull tension of 101 lbs and proven safety standards including UL, CSA, and RoHS compliance, it ensures long-lasting, safe operation in demanding environments. Perfect for professionals and technicians needing a versatile, durable cable for complex electronic systems.
Get Alpha Wire 18988CSL005 today—built for durable electrical connections in industrial and electronics applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 18988CSL005?
You can click on the BUY or RFQ button to purchase 18988CSL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 18988CSL005?
You can download the 18988CSL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 18988CSL005?
ALPHA WIRE
