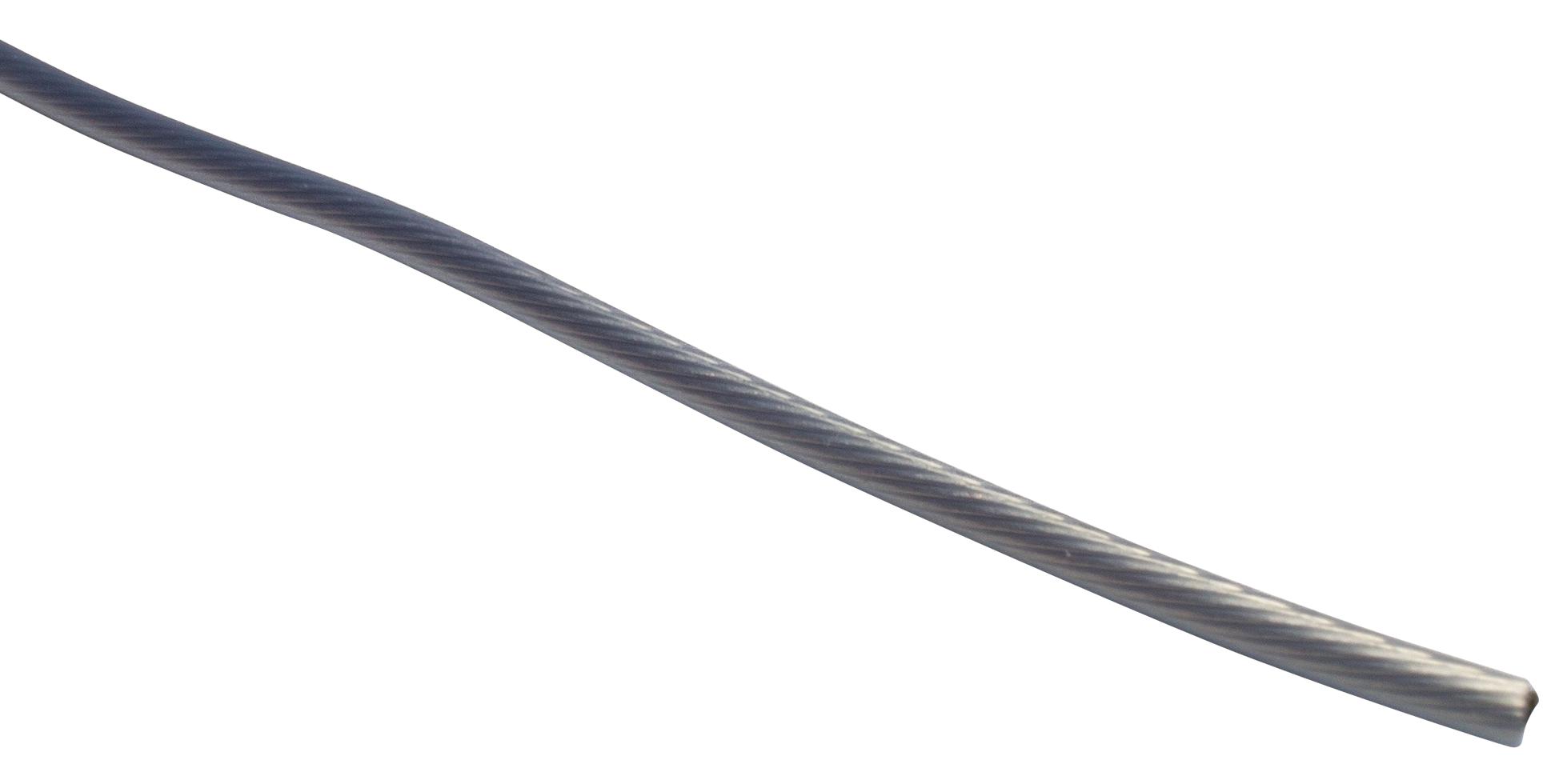

ALPHA WIRE 2616WH005 High-Temperature Wire
The product is a flexible, high-temperature rated wire designed for electrical and electronic applications. It features a 16 AWG copper conductor with 10% nickel plating for enhanced corrosion resistance and a 0.007-inch wall PFA insulation available in multiple ANSI standard colors including white, black, red, green, yellow, blue, brown, and orange. It provides a voltage rating of 600 V, operates over a temperature range from -150°C to 300°C, and complies with RoHS, REACH, and UL standards. Suitable for environments requiring chemical, water, and sunlight resistance, it is ideal for industrial wiring, control systems, and electronic equipment where durability and safety are essential.
ALPHA WIRE 2616WH005 High-Temperature Wire Specifications:
- Conductor Size: 16 AWG (19/.0117) with 10% Nickel-plated Copper
- Insulation: 0.007-inch wall, PFA, UV and chemical resistant
- Operating Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X Cable Diameter
- Maximum Pull Tension: 20.4 lbs
- Electrical Inductance: 0.03 H/ft
- Conductor DCR: 4.6 O/1000f @ 20°C
- Flammability: UL 94V-0
- Applicable Standards: UL AWM Style 11905, RoHS, REACH, EU Low Voltage Directive 2014/35/EU
- Applications: Industrial wiring, control panels, electronic devices, environments requiring chemical and water resistance
Buy the Buy Alpha Wire Part Number 2616WH005 Online
Purchase Alpha Wire 2616WH005 now for reliable electrical connections in demanding environments. This high-temperature wire features nickel-plated copper conductors and PFA insulation, ensuring durability and resistance to chemicals, water, and sunlight. Perfect for industrial machinery, control panels, and electronic devices, it meets UL, RoHS, and REACH standards for safety and compliance. With an operating temperature up to 300°C and a voltage rating of 600 V, this wire offers exceptional performance in harsh conditions. Order online today for fast, secure delivery and expert support.
Get Alpha Wire 2616WH005 today—designed for high-temperature, chemical, and water resistance with durable PFA insulation.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2616WH005?
You can click on the BUY or RFQ button to purchase 2616WH005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2616WH005?
You can download the 2616WH005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2616WH005?
ALPHA WIRE
