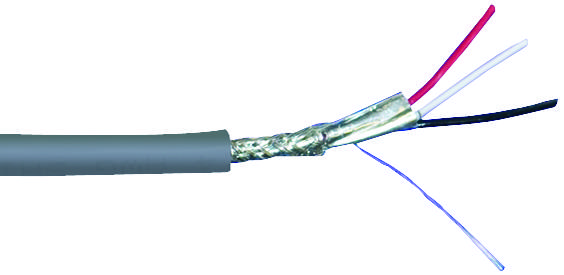

ALPHA WIRE 6360SL005 shielded communication cable
This shielded cable assembly features 24 AWG conductors with polyethylene foam insulation, a PVC jacket in slate color, and aluminum/Mylar foil shielding with drain wire and braid coverage. Designed for low-voltage applications up to 300 V, it offers excellent mechanical and electrical properties, including a bend radius of 10 times the cable diameter and maximum pull tension of 98 lbs. It complies with RoHS and UL standards, suitable for control, instrumentation, and communication needs where reliable shielding and flexibility are essential.
ALPHA WIRE 6360SL005 shielded communication cable Specifications:
- Conductor: 24 AWG TC
- Insulation Wall: 0.016 inches, Polyethylene Foam
- Jacket: 0.035 inches PVC, Slate color
- Shield: Aluminum/Mylar tape, 25% overlap, foil facing out, 24 AWG drain wire, braid coverage 65%
- Diameter: Nominal 0.432 inches, Max 0.452 inches
- Temperature Range: -20°C to 80°C
- Voltage Rating: 300 V
- Bend Radius: 10x cable diameter
- Pull Tension: 98 lbs max
- Mutual Capacitance: 12 pF/ft @ 1 kHz
- Ground Capacitance: 22 pF/ft @ 1 kHz
- DCR Conductors: 26 ohms/1000 ft @ 20°C
- DCR Shield: 2.6 ohms/1000 ft @ 20°C
- Applicable Standards: UL, CSA, VW-1 Flame Test, CM or AWM 2919 Low Voltage
- Available Lengths: 1000 ft, 500 ft, 100 ft
- RoHS Compliant: Yes, including EU and China directives
Buy the Alpha Wire 6360 – Reliable Shielded Communication Cable for Industrial Applications
Order the shielded communication cable in stock from Alpha Wire today and ensure your industrial projects benefit from high-quality, RoHS-compliant shielding and insulation. This versatile cable offers excellent electrical properties, a durable PVC jacket, and aluminum/Mylar foil shielding for optimal signal integrity. Available in lengths of 100, 500, and 1000 feet, it is perfect for controlling, monitoring, and transmitting data in industrial environments. Enhance your system reliability by purchasing directly online and enjoy fast, secure delivery from trusted suppliers.
Buy Alpha Wire 6360 now and experience unmatched reliability and performance in your industrial control and communication systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 6360SL005?
You can click on the BUY or RFQ button to purchase 6360SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 6360SL005?
You can download the 6360SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 6360SL005?
ALPHA WIRE
