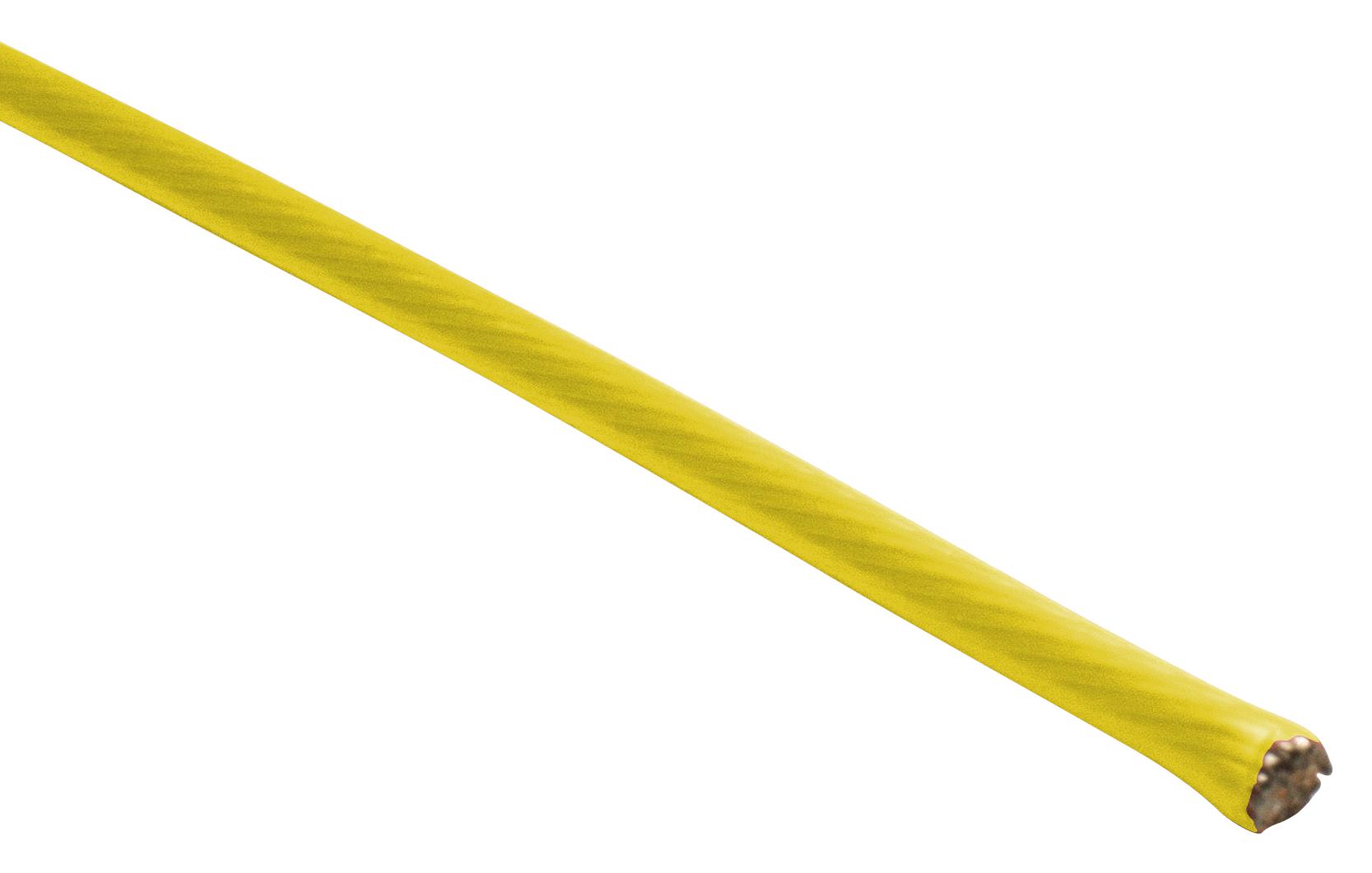

ALPHA WIRE 2616YL005 high-temperature wire
The product is a flexible, high-temperature rated wire designed for industrial and electrical applications, featuring a 16 AWG copper conductor with a 0.007-inch wall PFA insulation in multiple colors. Compliant with UL 11905, RoHS, and REACH standards, it offers a temperature range from -150°C to 300°C, with a 600 V voltage rating. Suitable for environments requiring chemical, water, and sunlight resistance, this wire provides excellent mechanical and electrical properties, including a low conductor DCR and a bend radius of 10 times the cable diameter, ensuring durability and safety in demanding conditions.
ALPHA WIRE 2616YL005 high-temperature wire Specifications:
- Construction: 16 AWG copper conductor, 0.056 inch diameter, with 0.007 inch thick PFA insulation
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10 times cable diameter
- Pull Tension: 20.4 Lbs maximum
- Electrical: Inductance 0.03 H/ft, Conductor DCR 4.6 O/1000f @20°C
- Colors: White, Black, Red, Green, Yellow, Blue, Brown, Orange
- Certifications: UL AWM Style 11905, RoHS, REACH, EU Low Voltage Directive
- Physical Dimensions: Flare traverse x barrel 6.5 x 4 x 2.5 inches, continuous length 2.75 x 2 x 1.125 inches
- Material: Nickel-plated copper, PFA insulation
Buy the Buy Alpha Wire Part Number 2616YL005 Online
Secure your supply of Alpha Wire 2616YL005 online today and benefit from premium quality, exceptional temperature resistance, and chemical durability. Ideal for demanding environments, this wire ensures safety, flexibility, and long-lasting performance with UL approval and RoHS compliance. Purchase now to streamline your projects and enjoy fast delivery, competitive pricing, and trusted specifications for industrial electrical installation. Trust Alpha Wire for durable, reliable wiring solutions designed to meet rigorous standards and exceed expectations.
Order your Alpha Wire Series2616YL005 today and ensure reliable, high-temperature electrical performance for your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2616YL005?
You can click on the BUY or RFQ button to purchase 2616YL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2616YL005?
You can download the 2616YL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2616YL005?
ALPHA WIRE
