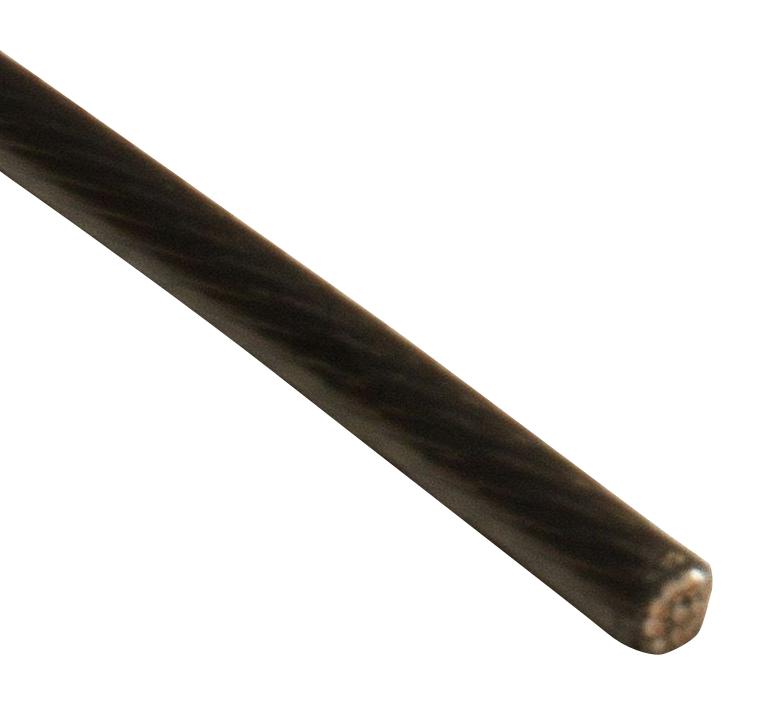

ALPHA WIRE 2618BK005 High-Temperature Hookup Wire
Flexible, high-temperature hookup wire designed for harsh environments, featuring 18 AWG copper conductors with a nickel-plated finish and PFA insulation. Certified for UL AWM Style 11905, rated up to 300°C and 600 V, with excellent chemical, water, and sunlight resistance. Suitable for electrical and electronic applications requiring robust insulation and high mechanical flexibility. The wire's thin wall insulation and durable construction make it ideal for challenging industrial and commercial deployments, ensuring reliable performance in extreme temperature ranges from -150°C to 300°C. Perfect for wiring harnesses and control circuits demanding insulation integrity and environmental resilience.
ALPHA WIRE 2618BK005 High-Temperature Hookup Wire Specifications:
- Conductor: 18 AWG copper, 19/30 strands, Nickel-plated
- Insulation: 0.007 inch PFA, white, black, red, green, yellow, blue, brown, orange
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Maximum Pull Tension: 14.9 Lbs
- Inductance: 0.03 H/ft (nominal)
- Conductor DCR: 6.3 Q/1000ft @20°C
- Diameter: Approximate wire diameter 0.047 inch
- Spool Dimensions: 6.5 x 4 x 2.5 inches and 2.75 x 2 x 1.125 inches (length varies slightly)
Buy the Alpha Wire Series 711 High-Temperature Hookup Wire: 2618
Order Alpha Wire 2618 now to ensure your electrical projects benefit from superior insulation, high thermal tolerance, and exceptional chemical and water resistance. Designed for robust environments, this flexible hookup wire supports wide temperature ranges from -150°C to 300°C, making it ideal for industrial, electronic, and control system applications. With UL certification and European RoHS compliance, it guarantees safety and environmental friendliness. Secure your supply today for dependable, durable connections in the most challenging conditions, and enjoy fast, reliable online shopping experience.
Buy Alpha Wire 2618 now and experience unmatched reliability and performance with high-temperature, chemical-resistant hookup wire suitable for demanding industrial applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2618BK005?
You can click on the BUY or RFQ button to purchase 2618BK005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2618BK005?
You can download the 2618BK005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2618BK005?
ALPHA WIRE
