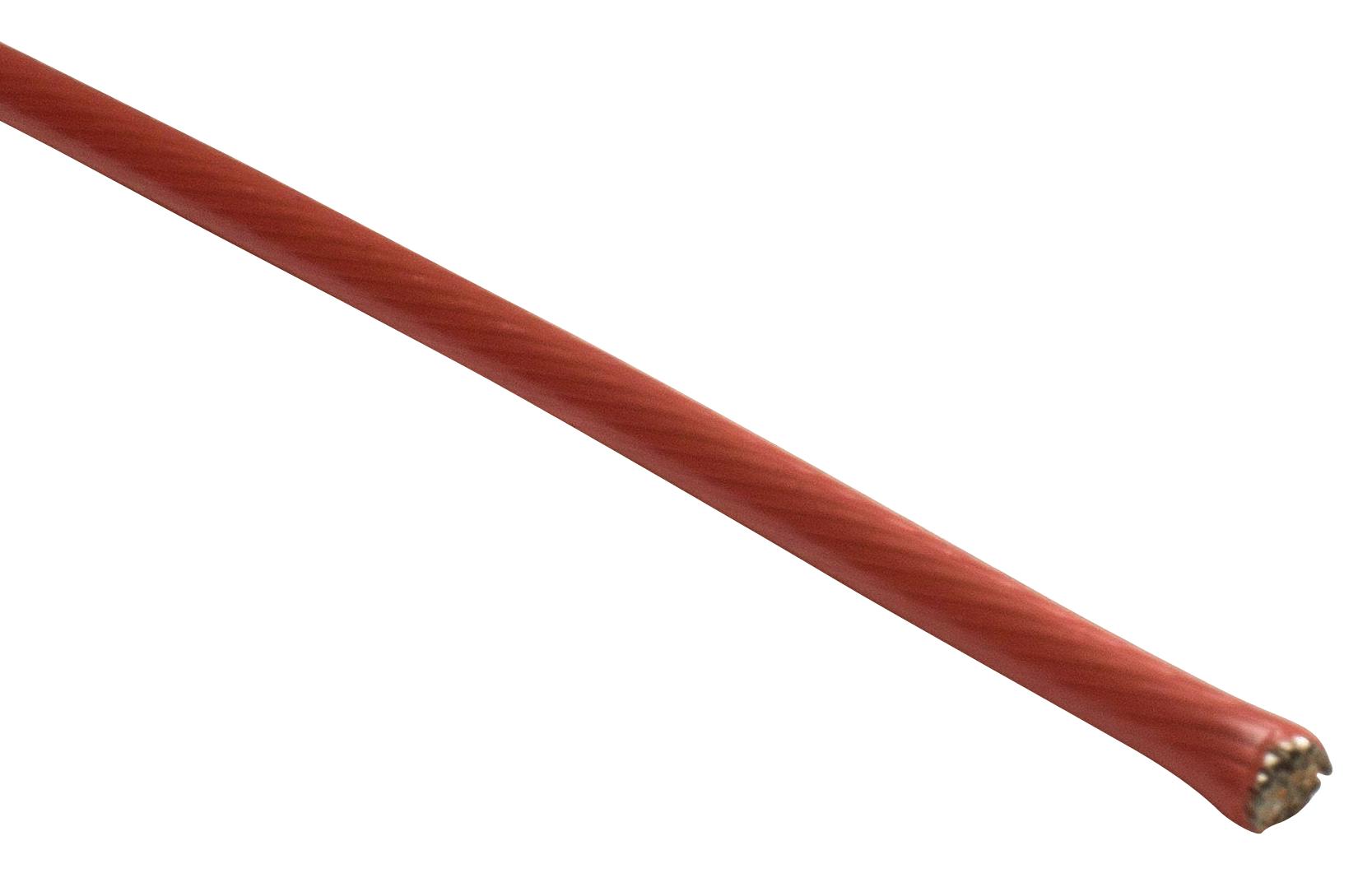

ALPHA WIRE 2618RD001 PFA Hook-Up Wire
The ALPHA WIRE 2618 RD001 is a high-performance hook-up wire designed for demanding environments. Constructed with 19/30 stranded 18 AWG nickel-plated copper conductor and a durable PFA insulation, this wire offers exceptional resistance to chemicals, heat, and abrasion. Its wide temperature range (-150°C to 300°C) makes it suitable for applications in aerospace, automotive, and industrial equipment. The wire is RoHS compliant, ensuring environmental responsibility. Available in various lengths and put-ups, the 2618 RD001 provides a reliable and long-lasting solution for power and signal transmission.
ALPHA WIRE 2618RD001 PFA Hook-Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 18 (19/30) AWG 10% Nickel Plated Copper
- Insulation: 0.007" Wall, Nom. PFA
- Diameter (In): 0.047
- Insulation Diameter: 0.061+/- 0.002
- Colors: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE
- UL: AWM/STYLE 11905
- Voltage Rating: 300°C / 600 VRMS
- Sunlight Resistant: Yes
- Chemical Resistant: Yes
- Water Resistant: Yes
- CE: EU Low Voltage Directive 2014/35/EU
- Temperature Range: -150 to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 14.9 Lbs, Maximum
- Inductance: 0.03 μH/ft, Nominal
- Conductor DCR: 6.3 Ω/1000ft @20°C, Nominal
- Packaging - 1000 FT: 6.5 x 4 x 2.5 Continuous length
- Packaging - 100 FT: 2.75 x 2 x 1.125 Continuous length
- Lead: 0.1% by weight (1000 ppm)
- Mercury: 0.1% by weight (1000 ppm)
- Cadmium: 0.01% by weight (100 ppm)
- Hexavalent Chromium: 0.1% by weight (1000 ppm )
- Polybrominated Biphenyls (PBB): 0.1% by weight (1000 ppm)
- Polybromated Diphenyl Ethers (PBDE): 0.1% by weight (1000 ppm)
- Bis(2-ethylhexyl) phthalate (DEHP): 0.1% by weight (1000 ppm)
- Butyl benzyl phthalate (BBP): 0.1% by weight (1000 ppm)
- Dibutyl phthalate (DBP): 0.1% by weight (1000 ppm)
- Diisobutyl phthalate (DIBP): 0.1% by weight (1000 ppm)
Buy the 2618 RD001 ALPHA WIRE PFA Hook-Up Wire | myMectronic
Purchase the ALPHA WIRE 2618 RD001 securely and efficiently to ensure your project's success.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE 2618RD001?
You can click on the BUY or RFQ button to purchase 2618RD001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2618RD001?
You can download the 2618RD001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2618RD001?
ALPHA WIRE
