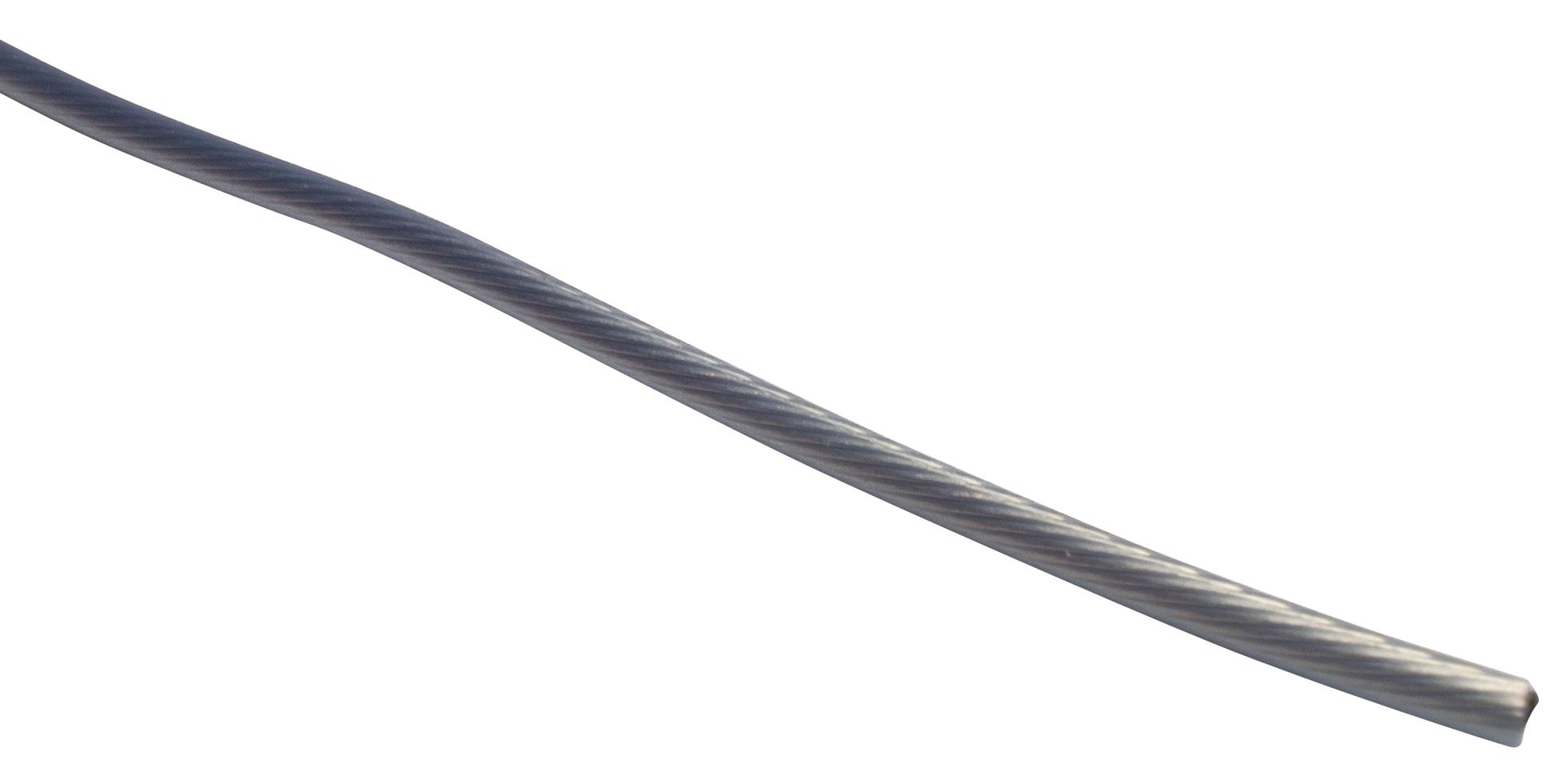

ALPHA WIRE 2618WH001 Hook Up Wire
The ALPHA WIRE 2618 WH001 is a highly versatile hook-up wire designed for demanding industrial environments. Constructed with 19/30 stranded 18 AWG nickel-plated copper conductor and a durable PFA insulation, this wire offers excellent resistance to heat, chemicals, and sunlight. Its broad temperature range (-150°C to 300°C) and 600 VRMS voltage rating make it suitable for a wide range of applications, including aerospace, automotive, and industrial control systems. The wire's RoHS compliance ensures adherence to environmental regulations, making it a responsible choice for modern applications. Available in 100 ft and 1000 ft lengths, the 2618 WH001 provides flexibility and convenience for various project sizes.
ALPHA WIRE 2618WH001 Hook Up Wire Specifications:
- Component 1: 1 X 1 HOOKUP
- Conductor: 18 (19/30) AWG 10% Nickel Plated Copper
- Insulation: 0.007" Wall, Nom. PFA
- Diameter: 0.047 inch
- Insulation Diameter: 0.061+/- 0.002 inch
- Color: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN ORANGE
- UL: AWM/STYLE 11905
- Voltage Rating: 300°C / 600 VRMS
- Sunlight Resistant: Yes
- Chemical Resistant: Yes
- Water Resistant: Yes
- CE: EU Low Voltage Directive 2014/35/EU
- Temperature Range: -150 to 300°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 14.9 Lbs, Maximum
- Voltage Rating (Electrical): 600 VRMS
- Inductance: 0.03 μH/ft, Nominal
- Conductor DCR: 6.3 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 6.5 x 4 x 2.5 inches (Continuous length)
- Packaging 100 FT: 2.75 x 2 x 1.125 inches (Continuous length)
