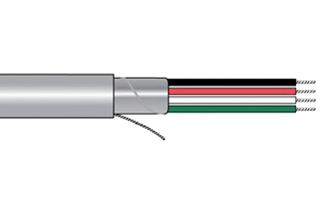

Alpha Wire 6328SL005 Shielded Multi-core Cable
The 6328 SL005 is a four-core shielded cable featuring tinned copper conductors and semi-rigid PVC insulation. It is designed for reliable performance in audio, communications, networking, automation, and instrumentation applications. The cable includes an aluminum/Mylar foil shield with 25% overlap, a drain wire, and an outer PVC jacket in slate color, providing durability and electromagnetic interference protection. Capable of handling up to 300 V, it has excellent electrical properties, including a ground capacitance of 58 pF/ft at 1 kHz and an inductance of 0.19 µH/ft, suitable for precise signal transmission and industrial use.
Alpha Wire 6328SL005 Shielded Multi-core Cable Specifications:
- Number of cores: 4
- Conductor Material: Tinned copper
- Conductor Size: 24 AWG
- Insulation: PVC, 0.010" wall, semi-rigid
- Shield: Aluminum/Mylar tape, 25% overlap
- Foil Facing: Outward
- Drain Wire: Tinned copper, 24 AWG
- Braid Coverage: 65% minimum
- Jacket Material: PVC, 0.032" wall, slate color
- Voltage Rating: 300 V
- Capacitance: 58 pF/ft at 1 kHz
- Inductance: 0.19 µH/ft
- Maximum Pull Tension: 20.2 lbs
- Operating Temperature Range: -20°C to 80°C
- Maximum Bend Radius: 10X cable diameter
- Packaging Lengths: 1000 ft, 500 ft, 100 ft
Buy the Buy AlphaWire Cable Part Number 6328SL005 Online
Purchase the AlphaWire 6328SL005 shielded multi-core cable online today for reliable signal transmission in automation, instrumentation, and networking. This four-core with tinned copper conductors, aluminum/Mylar foil shield, and PVC jacket ensures durability and interference protection. Ideal for professional electrical setups, it features a maximum voltage of 300 V, low capacitance, and excellent electrical properties. Experience fast shipping and secure checkout options to get this high-quality, versatile cable delivered directly to your door for your industrial and electronic projects.
Get AlphaWire 6328SL005 today—built for precision, durability, and EMI protection for industrial and electronic applications.
Frequently Asked Questions
Where can I buy Alpha Wire 6328SL005?
You can click on the BUY or RFQ button to purchase 6328SL005 from an authorized Alpha Wire distributor.
How do I troubleshoot issues or seek technical support for part 6328SL005?
You can download the 6328SL005 datasheet or visit the Alpha Wire website for support.
Who is the manufacturer of 6328SL005?
Alpha Wire
