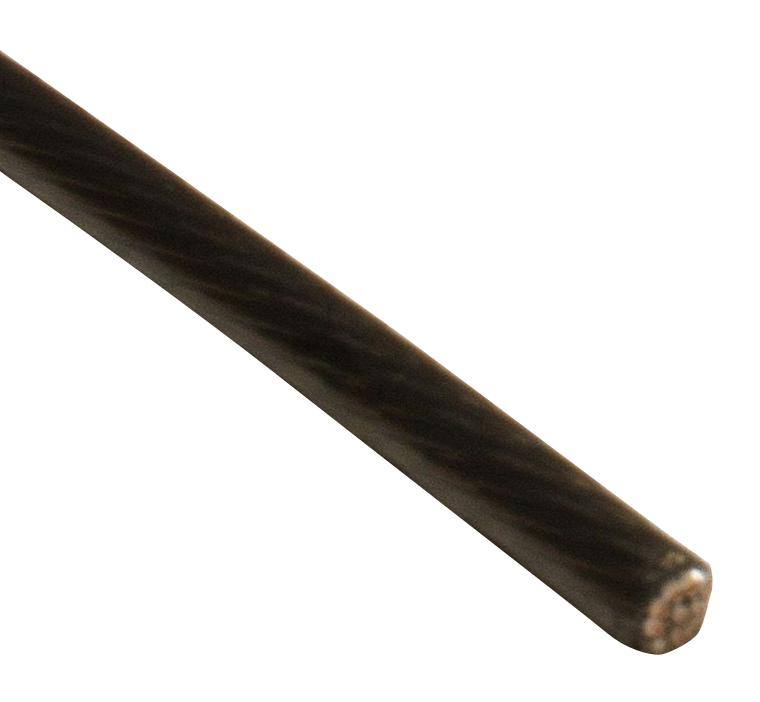

ALPHA WIRE 2620BK001 industrial wire
The product is a high-temperature, chemical, water, and sunlight-resistant wire designed for industrial applications, rated for 600 V and with a temperature range from -150°C to 300°C. It features 20 AWG copper conductors with nickel plating, insulated with PFA wall, color-coded for easy identification. Compliant with UL AWM Style 11905, EU RoHS, and REACH standards, this versatile wire offers excellent electrical and mechanical properties, including a bend radius of 10 times its diameter and a maximum pull tension of 9.6 lbs. Suitable for demanding industrial and environmental conditions, ensuring durability and safety.
ALPHA WIRE 2620BK001 industrial wire Specifications:
- Conductors: 20 AWG copper, nickel-plated, 0.038 inch diameter
- Insulation: PFA wall, 0.007 inch thick, color-coded (WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE)
- Temperature Range: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X Cable Diameter
- Pull Tension: 9.6 lbs
- Inductance: 0.03 H/ft
- Conductor DCR: 9.9 Ω/1000 ft at 20°C
- Cable Dimensions: 6.5 x 2 x 1.9 inches (flange x traverse x barrel), length varies
- Compliance: UL AWM Style 11905, RoHS, REACH
- Environmental Resistance: Sunlight, chemical, and water resistant
- Applicable Standards: 600°C / 300 V rated
- Certifications: UL, RoHS, REACH compliant
Buy the Alpha Wire 2620 U– Reliable Industrial-Grade Wiring for Extensive Applications
Order the Alpha Wire 2620 online today for a high-quality, durable wire suitable for demanding industrial applications. Featuring nickel-plated copper conductors, PFA insulation, and a temperature range of -150°C to 300°C, this wire ensures great electrical performance and environmental resistance. Its UL approval, compliance with RoHS and REACH standards, and resistance to sunlight, chemicals, and water make it ideal for outdoor and industrial use. Benefit from fast shipping and secure online purchasing today to ensure reliable, long-lasting wiring in your projects.
Get Alpha Wire 2620 today—built for durability, high-temperature resistance, and reliable electrical performance in tough industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 2620BK001?
You can click on the BUY or RFQ button to purchase 2620BK001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 2620BK001?
You can download the 2620BK001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 2620BK001?
ALPHA WIRE
