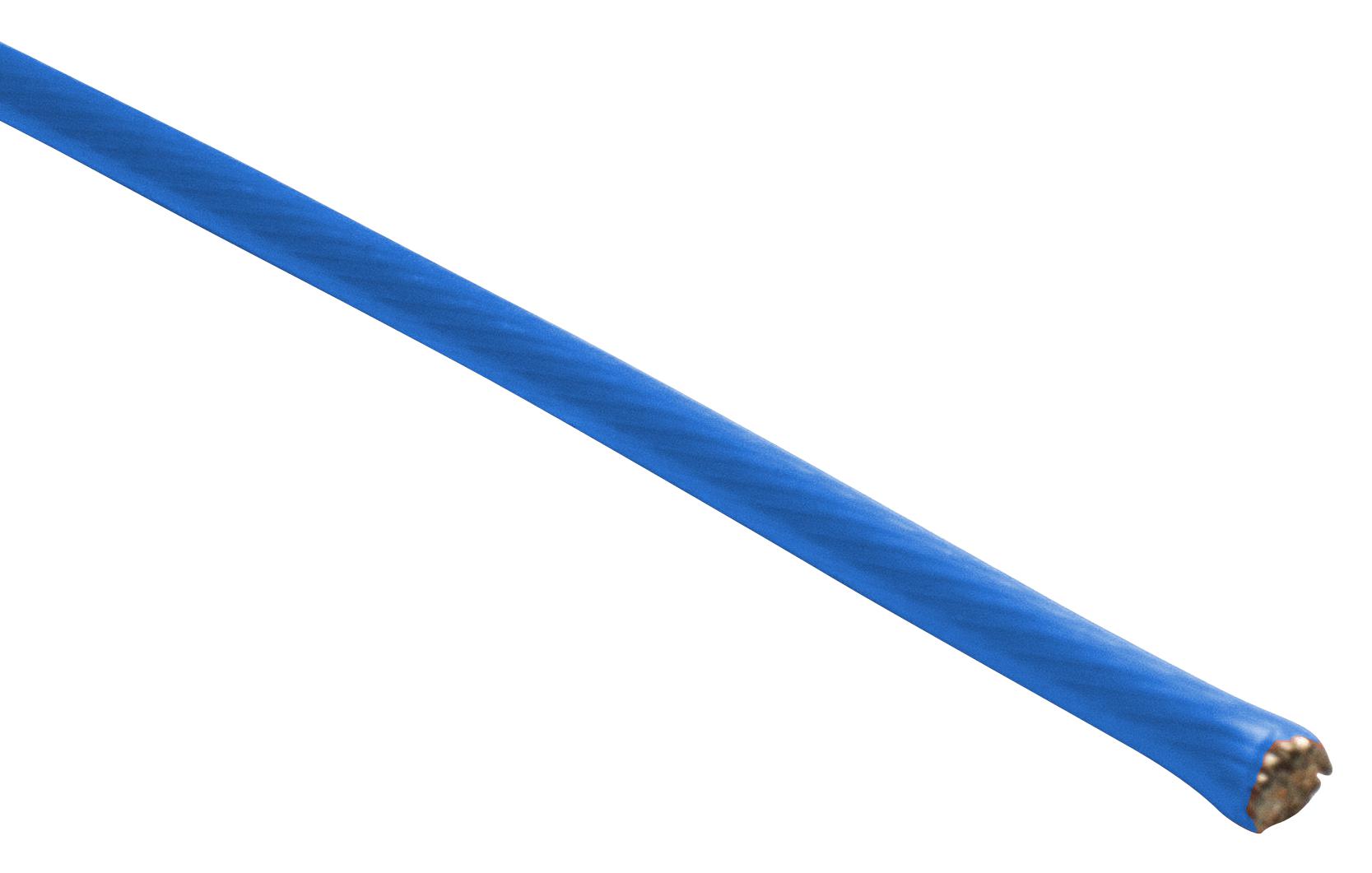

ALPHA WIRE 2624BL001 High-Temperature Electrical Wire
This high-temperature wire features a 24 AWG copper conductor with a 0.007-inch wall PFA insulation, rated for 300°C and 600 V. It is sunlight, water, and chemical resistant, complying with UL 11905 standards. Suitable for demanding electrical environments, it offers flexibility with a bend radius of 10 times the cable diameter and a maximum pull tension of 3.7 lbs. Available in multiple colors including white, black, red, green, yellow, blue, brown, and orange, this wire ensures durability and safety in diverse applications.
ALPHA WIRE 2624BL001 High-Temperature Electrical Wire Specifications:
- Conductor: 24 AWG copper (19/36 strand), Nickel plated
- Insulation: 0.007-inch thick PFA, white, black, red, green, yellow, blue, brown, orange
- Temperature Rating: -150°C to 300°C
- Voltage Rating: 600 V
- Bend Radius: 10X cable diameter
- Pull Tension: 3.7 lbs maximum
- Outer Diameter: approximately 0.038 inches
- Armored with flexible construction, continuous length options of 1000 ft or 100 ft
- Applications: Suitable for harsh environments, chemical, water, and sunlight resistance, compliant with UL standards
- Certifications: UL AWM Style 11905, EU RoHS, REACH, and California Prop 65 compliant
Buy the Buy Alpha Wire Part Number 2624BL001 Online
Purchase Alpha Wire 2624BL001 online for reliable high-temperature performance, chemical and water resistance, and UL 11905 certification. Perfect for demanding industrial, electrical, and control applications requiring durable insulation and flexibility in harsh environments. Our wire meets all major safety standards, including RoHS and REACH directives, ensuring compliance and peace of mind. With options for continuous lengths of 1000 feet or 100 feet, this wire offers flexibility to suit your project needs, ensuring quality and safety across all operations.
Get Alpha Wire 2624BL001 today—designed for high-temperature applications and long-lasting durability.
