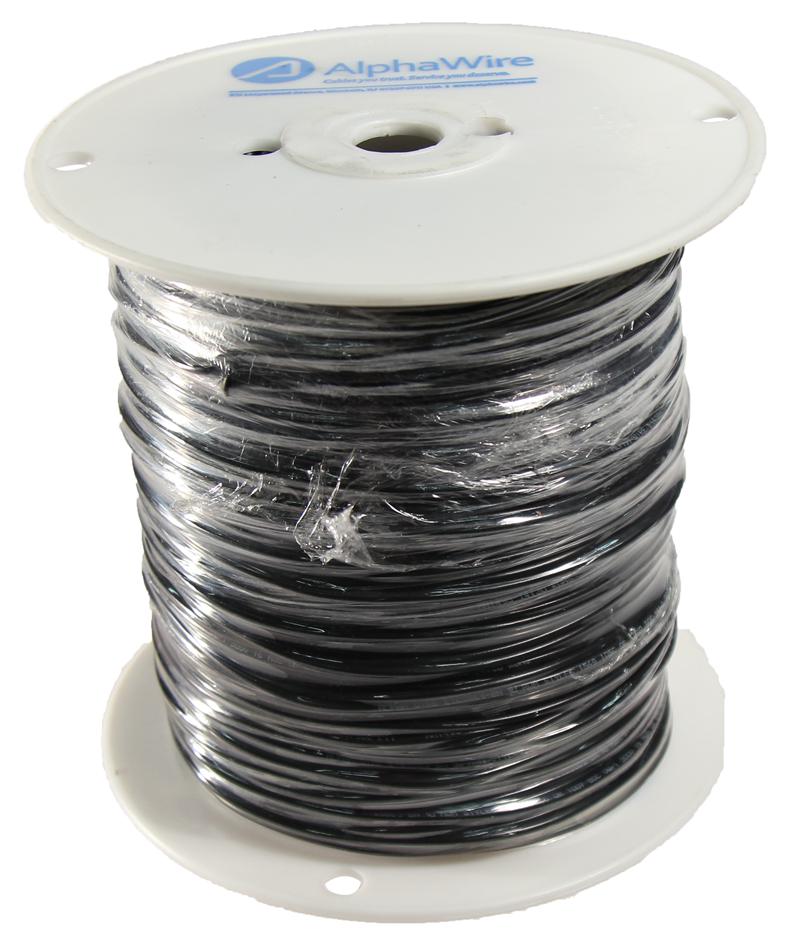

ALPHA WIRE 3050WH005 Hook-up Wire
The 3050 WH005 is a 100-foot hook-up wire featuring a stranded tinned copper conductor and PVC insulation. It is designed for use in control cabinets within protected environments, as well as in applications such as machine tools on factory floors, high-temperature ovens, and off-road construction equipment. This wire offers excellent resistance to wear, abrasion, oil, solvents, and chemicals. Additionally, it provides consistent electrical properties, easy handling, stripping, and termination. The wire also boasts flame resistance, a maximum pull tension of 3.5 pounds, and a nominal inductance of 0.07 µH per foot.
ALPHA WIRE 3050WH005 Hook-up Wire Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 24 AWG (7/32 inch)
- Insulation Thickness: 0.016 inches PVC
- Maximum Temperature: 105°C
- Voltage Rating: 300 V
- Inductance: 0.07 µH/ft
- Conductor Resistance: 25 Ω/1000ft at 20°C
- Pull Tension: 3.5 pounds
- Bend Radius: 10x Cable Diameter
- Outer Length: 100 feet
- Color Options: White, Black, Red, Green, Yellow, Blue, Brown, Orange, Slate, Violet, White/Black, White/Red, White/Green, White/Yellow, White/Blue, White/Brown, White/Orange, White/Slate, White/Violet, Green/Yellow, Pink
Buy the Buy AlphaWire Part Number 3050WH005 Online
Purchase the AlphaWire 3050WH005 hook-up wire online today to ensure reliable electrical connections in control cabinets, machinery, ovens, and off-road equipment. This 100-foot roll features stranded tinned copper conductors, PVC insulation, and excellent resistance to wear, oils, and chemicals. Its flame-resistant properties and consistent electrical characteristics make it ideal for industrial environments requiring high safety and durability standards. Enjoy quick, hassle-free ordering and fast delivery for your electrical supply needs.
Buy AlphaWire 3050WH005 now and experience unmatched reliability and high-temperature performance in industrial electrical wiring.
