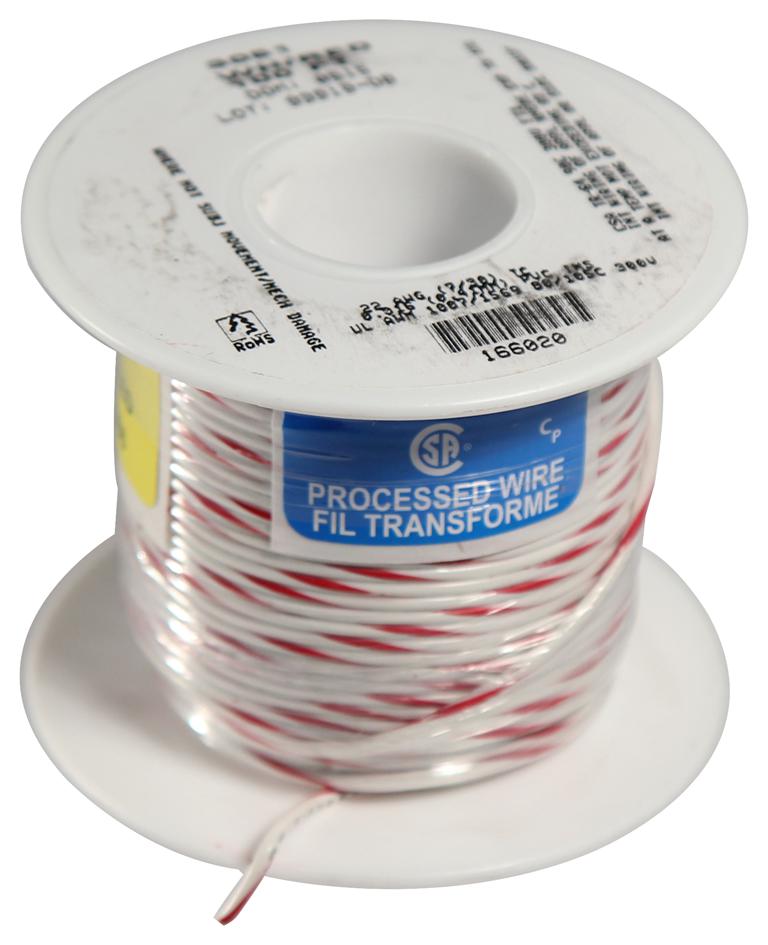

ALPHA WIRE 3051WR005 Hookup Wire
The 3051 WR005 is a 100-foot hookup wire featuring a stranded tinned copper conductor and PVC insulation. Designed for use in control cabinets within protected environments or for specialized applications such as machine tools on factory floors, high-temperature ovens, or off-road construction equipment. The wire offers excellent durability against wear and abrasion, along with favorable electrical properties and resistance to oil, solvents, and chemicals. It provides uniformity for easy handling, stripping, and termination. Additional features include excellent flame resistance, a maximum pull tension of 5.5 pounds, and a nominal inductance of 0.06 microhenries per foot. Suitable for industrial and automotive applications.
ALPHA WIRE 3051WR005 Hookup Wire Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 22 AWG (7/30)
- Insulation Wall Thickness: 0.016 inches
- Insulation Material: PVC
- Insulation Diameter: 0.062 inches
- Voltage Rating: 300 V
- Temperature Range: -40°C to +105°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 5.5 Lbs
- Inductance: 0.06 µH/ft
- Conductor DCR: 16.2 Q/1000ft @20°C
- Flame Resistance: UL 94V-0
- Certifications: UL Recognized, CSA
- Outer Dimensions per Spool: 12 x 4.5 x 3.5 inches (5000 ft), 6.5 x 4 x 2.5 inches (1000 ft), 2.75 x 2 x 1.125 inches (100 ft)
Buy the Buy Alpha Wire Hookup Wire Part Number 3051WR005 Online
Purchase the Alpha Wire 3051WR005 hookup wire online to enjoy fast delivery and secure transactions. Designed with stranded tinned copper conductors and PVC insulation, this 100-foot roll offers exceptional durability against wear, abrasion, and chemicals. Its flame-resistant properties meet UL 94V-0 standards, making it suitable for use in control cabinets, factory floors, high-temperature ovens, and off-road equipment. With a maximum pull tension of 5.5 pounds, excellent electrical properties, and resistance to oil and solvents, it is ideal for industrial, automotive, and electronic applications requiring dependable performance in demanding environments.
Order your Alpha Wire 3051WR005 hookup wire today and ensure reliable electrical connections for your industrial and automotive projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3051WR005?
You can click on the BUY or RFQ button to purchase 3051WR005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3051WR005?
You can download the 3051WR005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3051WR005?
ALPHA WIRE
