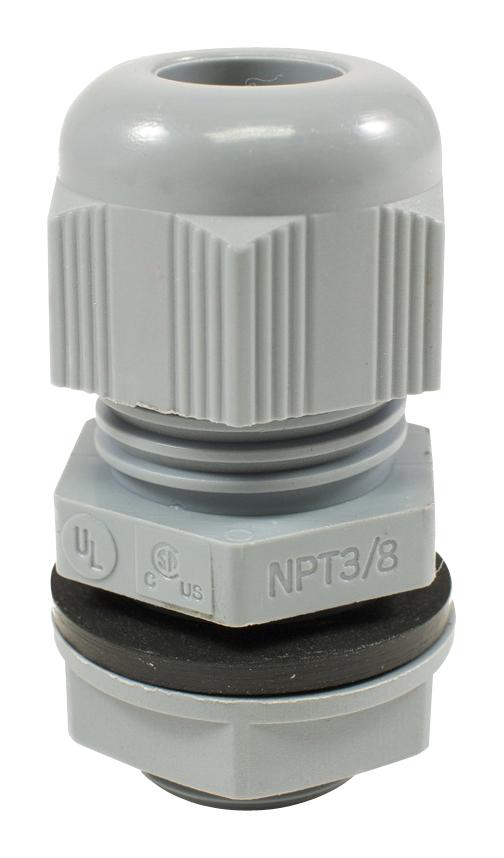

ALPHA WIRE PPC13SL080 Cable Gland
The PPC13 SL080 Fit® Standard Dome Design PG Cable Gland offers superior cable strain relief and environmental protection. Constructed from high-strength polyamide 6 in slate color (RAL 7001), it resists dust, dirt, and sand, providing watertight sealing per IP68 standards, capable of withstanding 5 bar pressure for 30 minutes. The gland includes a locknut and gasket for secure installation, with rubber seals preventing water ingress under pressure. Rated Flammability UL94V-2, it operates from -20°C to +100°C permanently and -30°C to +150°C intermittently, UL listed (514), CSA certified (C22).
ALPHA WIRE PPC13SL080 Cable Gland Specifications:
- Material: Polyamide 6 (PA 6)
- Color: Slate (RAL 7001)
- Protection Class: IP68, IP66
- Sealing Pressure: 5 bar, 30 min
- Flammability: UL94V-2
- Temperature Rating: -20°C to +100°C (permanent), -30°C to +150°C (intermittent)
- Thread Types: PG7, PG9, PG11, PG13, PG21, PG29
- Thread Lengths: 8-11 mm depending on size
- Outer Diameter: Ranges from approximately 15 mm to 37 mm depending on model
- Certifications: UL 514 Listed, CSA C22.2 Certified
- Pack Size: 10 glands per package
Buy the Buy Alpha Wire Cable Gland Part Number PPC13SL080 Online
Purchase the Alpha Wire PPC13SL080 cable gland online and ensure your projects are protected with high-strength polyamide 6 manufacturing, IP68 sealing, and rated for demanding industrial environments. This gland features robust rubber seals and secure installation components like locknuts and gaskets. Its wide temperature range from -20°C to +150°C makes it suitable for various applications including automation, renewable energy, and electrical equipment. UL and CSA certified, it guarantees safety, durability, and excellent environmental protection for professional use.
Order your Alpha Wire Series PPC13SL080 cable gland today and secure your electrical installations with reliable environmental protection and high-quality sealing.
