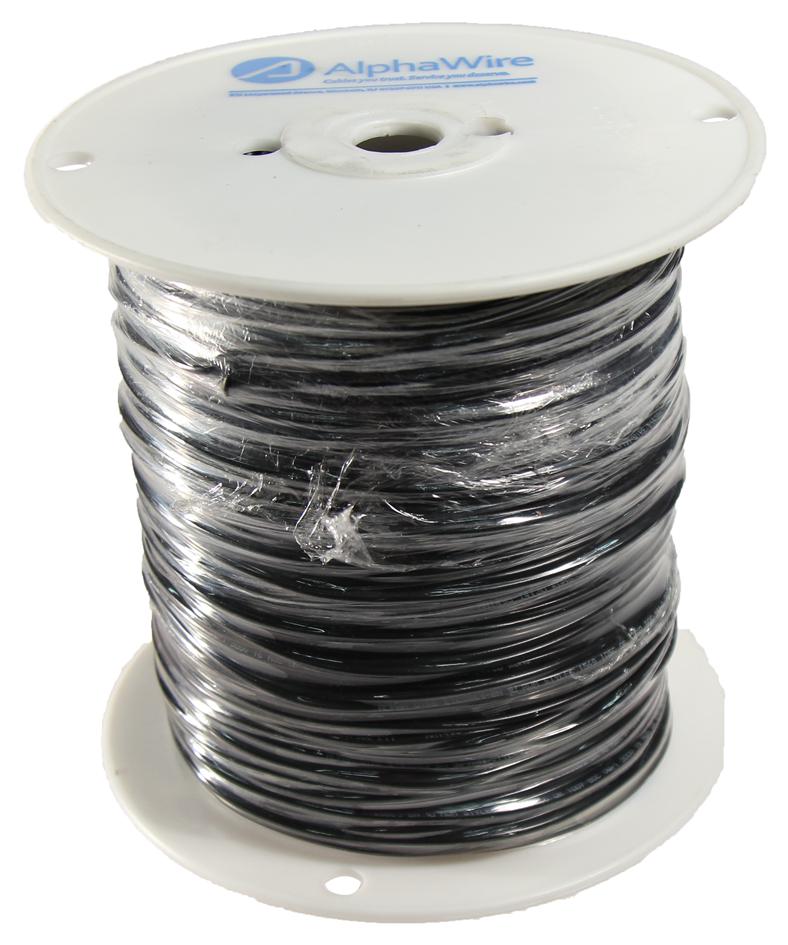

ALPHA WIRE 3053WH005 Hook-up Wire
The 3053 WH005 is a 100-foot hook-up wire featuring a stranded tinned copper conductor and PVC insulation. It is designed for control cabinets, machine tools, ovens, and off-road equipment, offering resistance to wear, abrasion, oil, solvents, and chemicals. The wire provides excellent electrical properties, easy handling, stripping, and termination due to its uniform construction. It complies with UL and CSA standards, features flame-retardant properties, and has a maximum pull tension of 7.9 pounds. Suitable for diverse industrial and automotive applications, ensuring durability and safety in challenging environments.
ALPHA WIRE 3053WH005 Hook-up Wire Specifications:
- Conductor Material: Tinned Copper
- Insulation Material: PVC
- Wire Length: 100 feet
- Conductor Gauge: 20 AWG (10/30)
- Wall Thickness: 0.016 inches
- Maximum Pull Tension: 7.9 pounds
- Temperature Range: -40°C to +105°C
- Voltage Rating: 300 V
- Inductance: 0.05 µH/ft
- DCR (Resistance): 11.4 Ω/1000 ft @ 20°C
- Flame Resistance: Meets UL and CSA standards
- Diameter: Not specified
- Bend Radius: 10X cable diameter
- Environmental Compliance: RoHS, REACH, California Proposition 65
Buy the AlphaWire 3053WH005 – Reliable Hook-Up Wire for Industrial Applications
Purchase AlphaWire 3053WH005 hook-up wire online today and ensure reliable performance for your electrical and control projects. This 100-foot length features a stranded tinned copper conductor and high-quality PVC insulation, offering excellent resistance to wear, oil, chemicals, and flame. Its UL and CSA certification guarantees safety and compliance with industry standards. The wire’s ease of handling and termination makes it ideal for control cabinets, machine tools, ovens, and off-road equipment. Invest in durable, high-performance wiring that meets strict environmental and safety regulations for industrial and automotive use.
Get AlphaWire 3053WH005 today—built for precision, durability, and easy installation in control and automation systems.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3053WH005?
You can click on the BUY or RFQ button to purchase 3053WH005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3053WH005?
You can download the 3053WH005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3053WH005?
ALPHA WIRE
