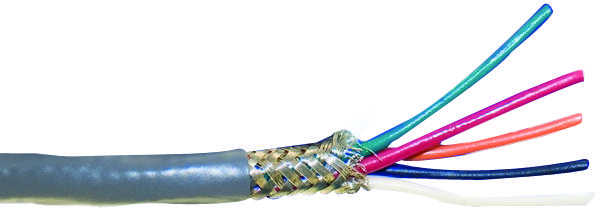

ALPHA WIRE 3210SL005 Shielded Control Cable
The product is a high-quality shielded control cable featuring a 24 AWG conductor with a 0.010-inch PVC insulation wall and a braided shield with 90% coverage, suitable for military and commercial applications. It complies with EU RoHS, REACH, and low-voltage directives, offering excellent electrical and mechanical properties, including a voltage rating of 600 V, a temperature range of -55°C to 105°C, and a bend radius of 10 times its diameter. Ideal for control, instrumentation, and signal applications requiring durability and compliance.
ALPHA WIRE 3210SL005 Shielded Control Cable Specifications:
- Conductor: 24 AWG (19/36) TC
- Insulation: 0.010 inch PVC wall, nylon jacket optional
- Shield: TC braid, 90% coverage
- Jacket: 0.010 inch PVC
- Voltage Rating: 600 V
- Temperature Range: -55°C to +105°C
- Bend Radius: 10x cable diameter
- Pull Tension: 5.7 lbs maximum
- Conductor Resistance: 23.9 ohms/1000 ft @20°C
- Ground Capacitance: 99 pF/ft @ 1kHz
- Inductance: 0.06 µH/ft
- Outer Dimensions: 6.5 x 6 x 1.9 inches
- Material: PVC insulation, nylon outer jacket, braided copper shield
Buy the Alpha Wire Series 3210 Shielded Control Cable: 3210SL005
Purchase the Alpha Wire 3210SL005 shielded control cable online today and ensure your industrial systems operate efficiently and safely. This cable features 24 AWG conductors with a durable PVC insulation, a braided shield with 90% coverage for EMC protection, and a flexible design suitable for control and instrumentation setups. Compliant with RoHS, REACH, and low-voltage standards, it offers excellent electrical performance, a broad temperature range, and ease of installation. Get durable, high-quality cable delivered quickly for your manufacturing, automation, and control systems.
Buy Alpha Wire 3210SL005 now and experience unmatched reliability and performance for your control and instrumentation applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 3210SL005?
You can click on the BUY or RFQ button to purchase 3210SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 3210SL005?
You can download the 3210SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 3210SL005?
ALPHA WIRE
