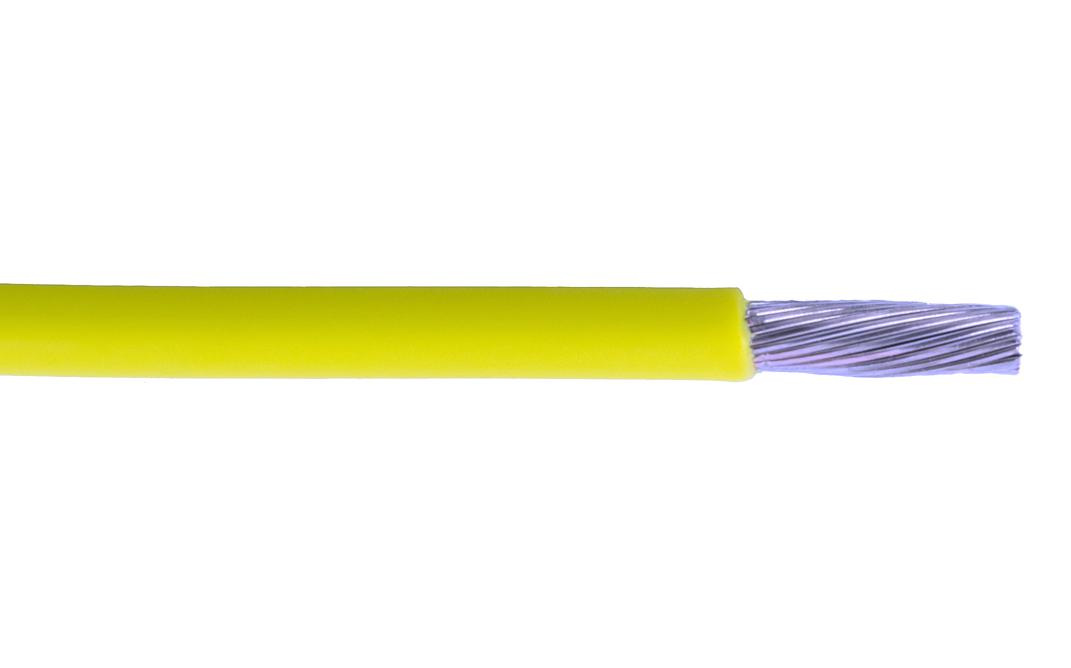

ALPHA WIRE 67050YL321 Control Cable
This cable features a tinned copper conductor with a 0.50 mm² cross-section, insulated with 0.250 mm wall modified polyphenylene ether. It is rated for 105°C and 600V, compliant with UL and CSA standards, and halogen-free for safety. Designed for reliable electrical connections in industrial and automation applications, it offers high flexibility with a bend radius of 10 times the cable diameter. The cable is available in multiple colors, including black, red, white, blue, and yellow, ensuring suitability for diverse wiring projects.
ALPHA WIRE 67050YL321 Control Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 0.50 mm (28/0.16)
- Insulation Wall Thickness: 0.250 mm
- Voltage Rating: 600V
- Temperature Range: -40°C to +105°C
- Flammability: UL VW-1, CSA FT1
- Standards: UL 11028, CSA AWM I/B, IEC 60332-2
- Halogen-Free: Yes
- Bend Radius: 10X Cable Diameter
- Available Colors: Black, Red, White, Blue, Green, Brown, Yellow, Orange, Violet, Green/Yellow
- Environmental Compliance: RoHS2, REACH
- Cable Lengths: 50 m, 100 m, 500 m typical spool lengths
- Physical Dimensions: Approximately 6.5 x 4 x 2.5 mm (spool), varies by length
Buy the AlphaWire 67050U3 – Reliable Control Cable for Industrial Applications
Ensure your industrial wiring projects are successful with our high-quality control cable. Rated for 105°C and 600V, this halogen-free, flexible copper wire offers excellent durability and safety. It complies with UL, CSA, and environmental standards like RoHS2 and REACH, making it suitable for various applications. Available in multiple colors and lengths, this cable provides reliable electrical performance and ease of installation. Purchase online now to get quick delivery and meet your project deadlines efficiently.
Order your AlphaWire Series 67050 control cable today and ensure reliable performance in your industrial wiring and automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 67050YL321?
You can click on the BUY or RFQ button to purchase 67050YL321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 67050YL321?
You can download the 67050YL321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 67050YL321?
ALPHA WIRE
