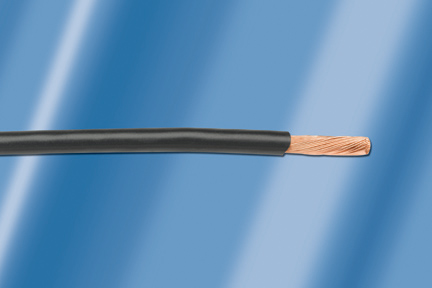

ALPHA WIRE 3251WHITE100 Hook Up Wire
The ALPHA WIRE 3251-WHITE-100 is a versatile hook-up wire designed for general-purpose industrial applications. Constructed with 22 AWG stranded copper conductors and a semi-rigid PVC insulation, this wire provides excellent flexibility and durability. It meets UL and CSA standards, ensuring reliable performance in various environments. The RoHS compliance indicates adherence to environmental regulations, making it a sustainable choice for modern applications. This wire is commonly used in appliances, electronics, and machinery for internal wiring and connections.
ALPHA WIRE 3251WHITE100 Hook Up Wire Specifications:
- Conductor AWG: 22 (7/30) AWG TC
- Insulation Wall: 0.010" Nom.
- Insulation Diameter: 0.050+/- 0.002"
- Print: ALPHA WIRE E163869-* RU AWM STYLE 1061 80C 300V VW-1 22 AWG --- LLXXXX CSA AWM I A/B 80C 300 VOLTS FT1 ROHS
- Colors Available: WHITE, BLACK, RED, GREEN, YELLOW, BLUE, BROWN, ORANGE, SLATE, VIOLET
- UL Rating: AWM/STYLE 1061, 80°C / 300 VRMS, VW-1
- CSA Rating: AWM I A/B, 80°C / 300 VRMS, FT1
- Temperature Range: -10 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 5.5 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Inductance: 0.05 µH/ft, Nominal
- Conductor DCR: 16.2 Ω/1000ft @20°C, Nominal
- Packaging 1000 FT: 6.5 x 2 x 1.9 inches
- Packaging 100 FT: 2.75 x 1 x 1.125 inches
- RoHS Compliant: Yes
- REACH Compliant: Yes
- Proposition 65 Compliant: Yes
