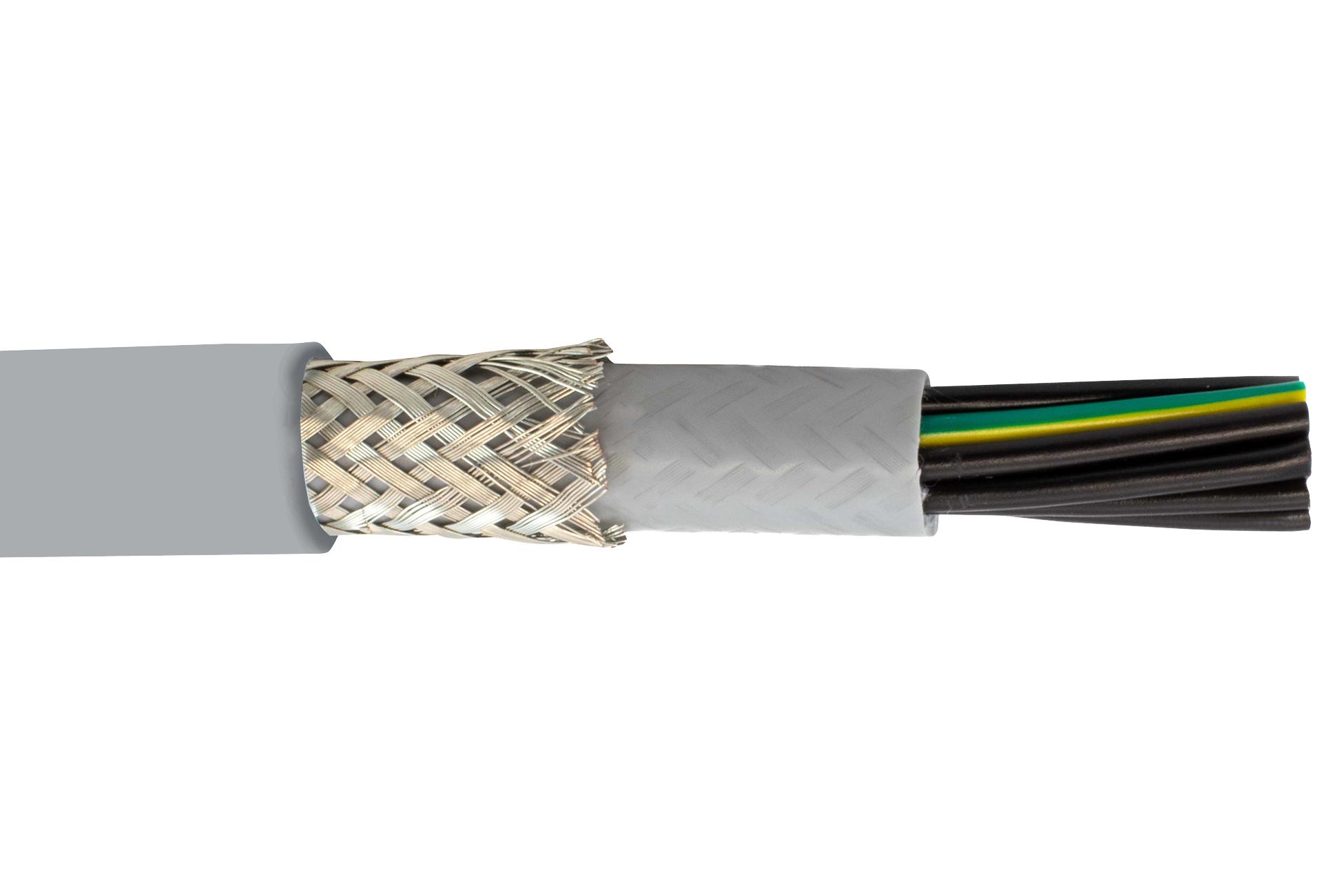

ALPHA WIRE 470055CYGE321 Control Cable
Pro-Met® shielded flexible industrial control cable designed for demanding environments. It features five 21 AWG stranded bare copper conductors, a tinned copper braid shield with 80% coverage, and a grey PVC jacket. Resistant to oils, UV radiation, and chemicals, it is ideal for food and beverage, medical, industrial automation, automotive, defense, aerospace, and motion control. Rated for up to 1 million flex cycles, it operates within -40°C to +80°C, with a static range of -40°C to +70°C, and a bend radius of 20x diameter for flexible use and 6x for fixed installations, ensuring durability.
ALPHA WIRE 470055CYGE321 Control Cable Specifications:
- Number of Conductors: 5
- Conductor Size: 21 AWG stranded bare copper
- Shield: Tinned copper braid with 80% coverage
- Jacket Material: Grey PVC
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 20x outer diameter (occasional movement), 6x outer diameter (fixed installation)
- Voltage Rating: 300/500 V
- Flammability: IEC 60332-1 Flame Test
- Environmental Resistance: Oil, UV, chemicals
- Rated for up to 1 million flex cycles
Buy the Alpha Wire Series Control Cable: 470055CYGE321
Order Alpha Wire 470055CYGE321 control cable online today for robust, flexible, and shielded wiring solutions ideal for industrial automation, medical equipment, automotive, and aerospace applications. Its high flexibility, oil and UV resistance, and large flex cycle rating guarantee long-lasting performance and reliability. Perfect for environments requiring heavy movement, it features five 21 AWG bare copper conductors, a tinned copper braid shield, and a durable grey PVC jacket. Secure your supply chain with fast online purchase and excellent technical support.
Buy Alpha Wire 470055CYGE321 control cable now and ensure reliable performance in demanding industrial environments with superior flexibility and durability.
