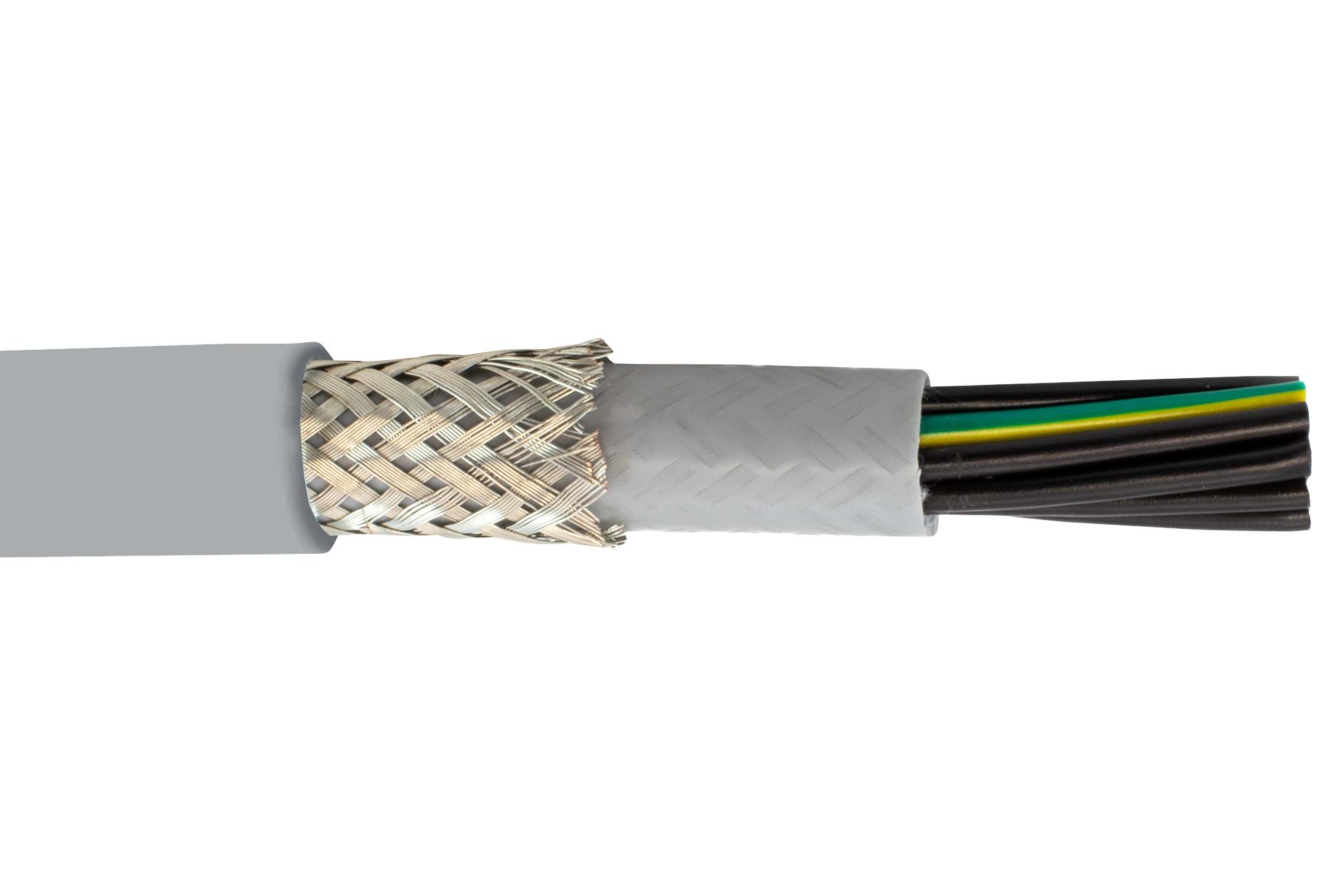

ALPHA WIRE 470315CYGE321 Industrial Control Cable
Pro-Met shielded flexible industrial control cable designed for harsh environments. It features stranded bare copper conductors, a tinned copper braid shield, and a grey PVC jacket. The cable resists oils, UV, chemicals, with temperature ranges from -40°C to +80°C static and -30°C to +70°C dynamic. Support for up to 1 million flex cycles, with a bending radius of 20 times the outer diameter for occasional movement and 6 times for fixed installation. Suitable for industrial automation, food, medical, automotive, defense, and aerospace industries, offering reliable performance in demanding environments.
ALPHA WIRE 470315CYGE321 Industrial Control Cable Specifications:
- Conductors: Stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Jacket Material: PVC, grey
- Temperature Range: -40°C to +80°C static, -30°C to +70°C dynamic
- Voltage Rating: 300/500 V
- Flex Resistance: Up to 1 million cycles
- Bend Radius: 20x outer diameter (occasional), 6x outer diameter (fixed)
- Diameters: 3x1 conductor, 1.50 mm (28/0.25) mm
- Wall Thickness: 0.400 mm PVC, 0.65 mm PVC respectively
- Compliance: IEC, EN 60228 Class 5, IEC 60332-1 flame behavior, UV resistant
- Application Suitability: Industrial automation, food and beverage, medical, automotive, defense, aerospace
Buy the Alpha Wire 470315CYU– Reliable Industrial Control Cable for Harsh Environments
Enhance your industrial applications with Alpha Wire’s high-performance control cable, featuring stranded copper conductors, tinned copper braid shield, and durable PVC jacket. Designed to withstand harsh environments, it offers high flex endurance of up to 1 million cycles, and an operating temperature range from -40°C to +80°C static, and -30°C to +70°C dynamic. Suitable for automation, medical, automotive, aerospace, and defense industries, ensuring flexible, safe, and reliable connections in critical applications. Order online now for fast, dependable delivery.
Order your Alpha Wire 470315CYGE321 industrial control cable today and ensure your projects operate reliably in demanding industrial settings.
