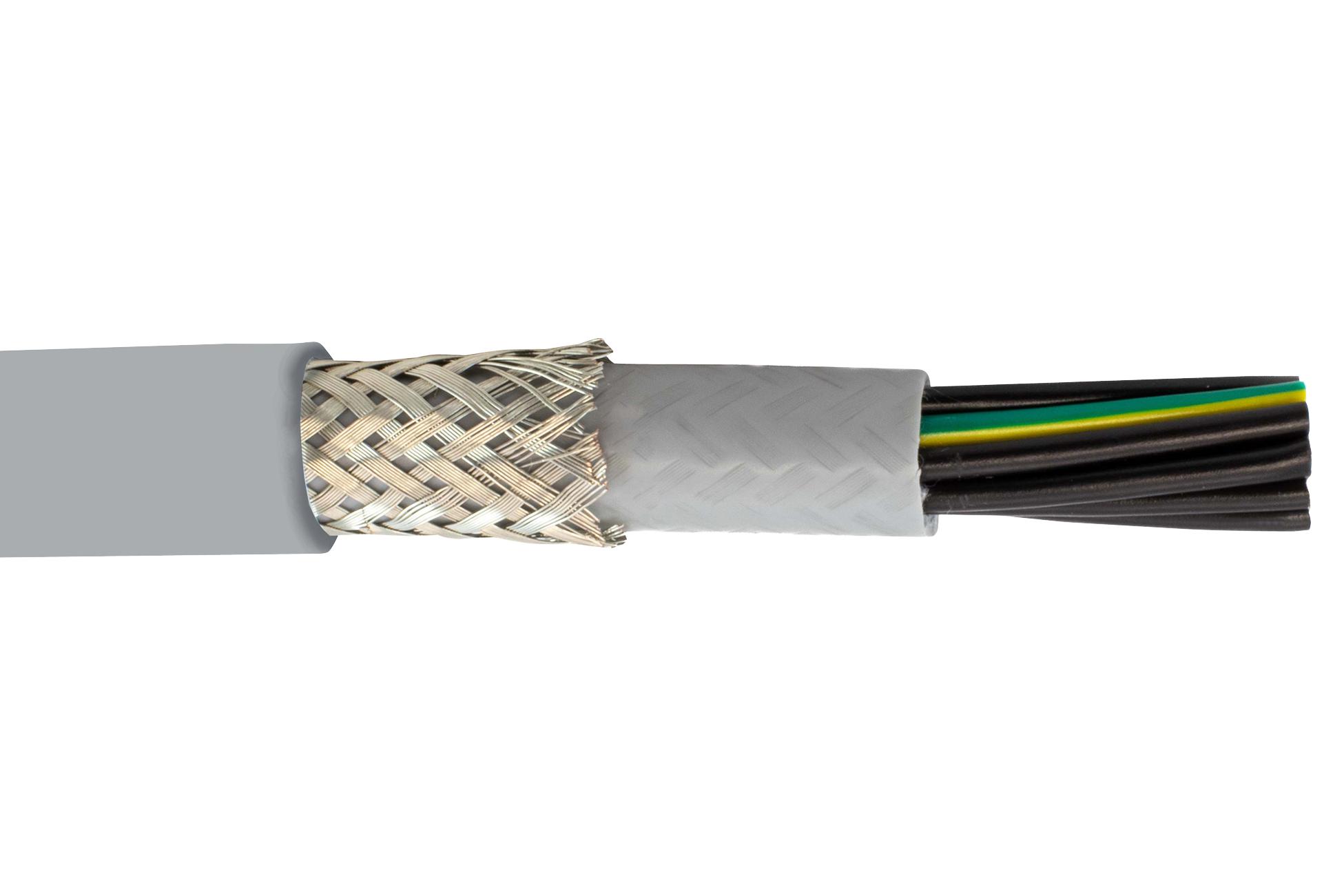

ALPHA WIRE 470715CYGE321 Shielded Control Cable
Pro-Met® shielded flexible industrial control cable designed with seven conductors of 15 AWG stranded bare copper, featuring a tinned copper braid shield and a grey PVC jacket (RAL 7001). This cable is resistant to oils, UV radiation, chemicals, and suitable for demanding environments. It supports up to 1 million flex cycles, operates within a temperature range of -30°C to +70°C dynamically and -40°C to +80°C statically. The bending radius is 20 times the outer diameter for occasional movement and 6 times for fixed installation. Ideal for food, medical, automation, and aerospace applications.
ALPHA WIRE 470715CYGE321 Shielded Control Cable Specifications:
- Number of Conductors: 7
- Conductor Size: 15 AWG stranded bare copper
- Shield Material: Tinned copper braid, 80% coverage
- Jacket Material: Grey PVC (RAL 7001)
- Operating Temperature: -30°C to +70°C (dynamic), -40°C to +80°C (static)
- Bend Radius: 20X outer diameter (occasional), 6X (fixed)
- Voltage Rating: 300/500 V
- Resistance: Conductor DCR 13.3 Q/Km @20°C
- Flammability: Meets IEC 60332-1 flame behavior standards
- Environmental Resistance: Oil, UV, chemical resistance
- Flex Cycles: Up to 1 million
- Application: Industrial automation, food processing, medical, aerospace, automotive
- Dimensions: Based on conductor size and length, typical insulation thickness approximately 1.10 mm
- Standards: EN 60228 Class 5, DIN VDE 0295 Class 5
- Certifications: CE, RoHS, REACH compliant
Buy the Alpha Wire 470715CY – Reliable Control Cable for Industrial Applications
Purchase the Alpha Wire 470715CY online today and ensure your industrial automation projects benefit from high-quality, durable, and flexible control cables. With resistances to oils, UV radiation, and chemicals, this shielded cable is perfect for demanding environments like food processing, medical, aerospace, and automotive industries. Its high flex life of up to 1 million cycles guarantees long-lasting performance. Browse now to get your shielded control cable delivered quickly and securely from trusted online sources—perfect for professional installers and end-users alike.
Buy Alpha Wire 470715CY now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470715CYGE321?
You can click on the BUY or RFQ button to purchase 470715CYGE321 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470715CYGE321?
You can download the 470715CYGE321 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470715CYGE321?
ALPHA WIRE
