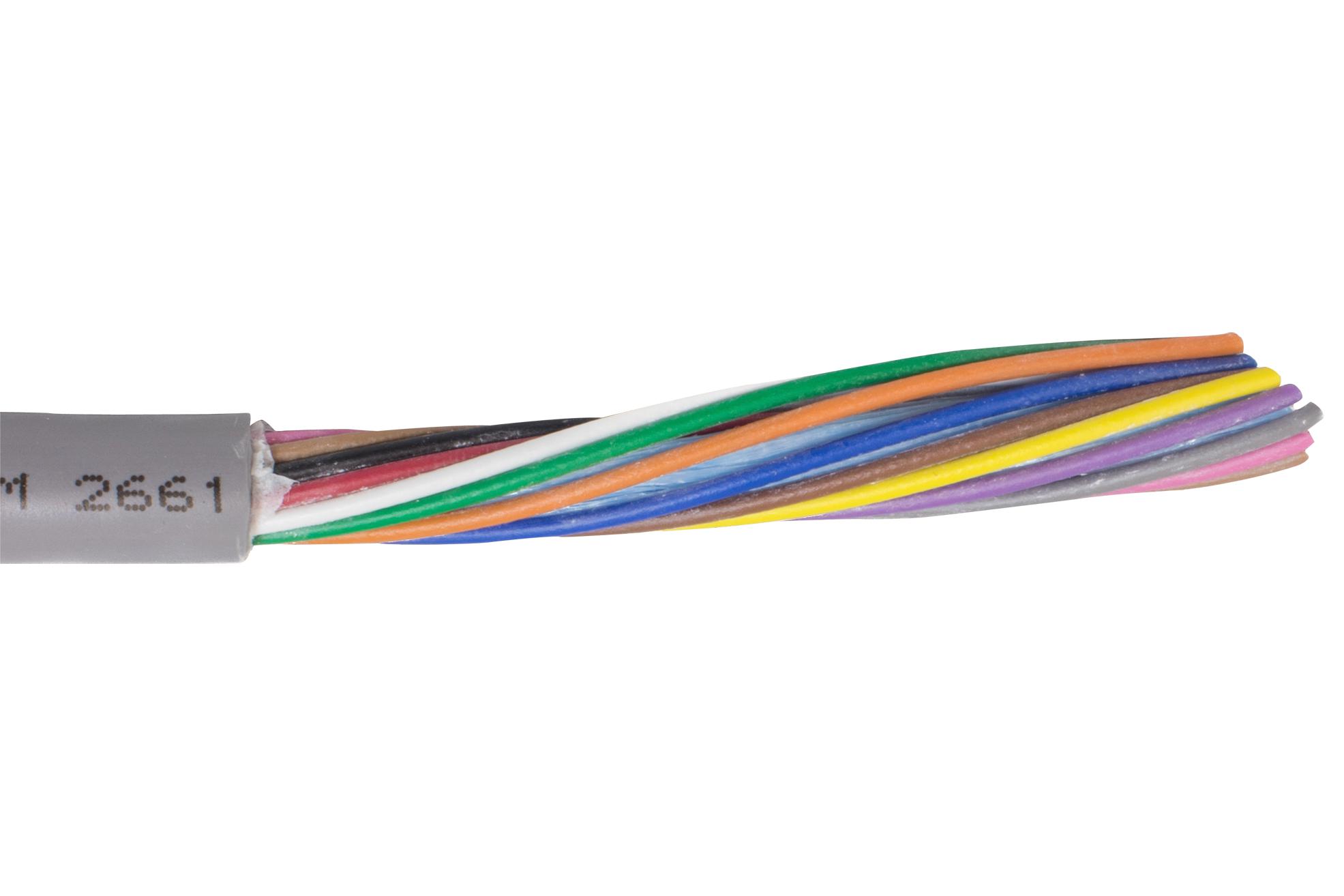

ALPHA WIRE 861605SL005 Flexible Data Cable
The product is a continuous flex data cable engineered for industrial and communications applications, featuring a 5-conductor configuration with 16 AWG tinned copper conductors. It has a PVC insulation wall and a PV Cjacket, providing durability, sunlight resistance, and compliance with UL, CSA, and European safety standards. Designed for dynamic flexing with a temperature range from 10°C to 105°C, it supports 300V voltage ratings, low capacitance, and inductance, suitable for various electrical and control systems requiring flexible, high-performance wiring solutions.
ALPHA WIRE 861605SL005 Flexible Data Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Size: 16 AWG (65/34)
- Insulation Wall Thickness: 0.010 inches
- Jacket Thickness: 0.043 inches
- Jacket Color: Slate
- Voltage Rating: 300 V
- Temperature Range: -10°C to 105°C (static), +5°C to 105°C (dynamic)
- Bend Radius: 8X cable diameter (static and dynamic)
- Pull Tension: Maximum 101 lbs
- Capacitance: 29 pF/ft @1 kHz
- Inductance: 0.15 pH/ft
- Conductor Resistance: 4.5 ohms/1000 ft @20°C
- Constructions: 5-core cabled, twists 4.8 per foot, nonwoven polyester core wrap
- Environmental Compliance: RoHS 2 and RoHS 3, REACH compliant
- Certifications: UL (AWM style 2661), CSA (AWM style), CE (EU Low Voltage Directive)
Buy the Buy AlphaWire 711402 Part Number 861605 Online
Purchase the AlphaWire 861605 flexible data cable online today for high-quality, UL and CSA certified electrical wiring suitable for demanding industrial and communication environments. Featuring a durable PVC jacket, sunlight resistance, and excellent electrical properties, this cable supports 300V applications and dynamic flexing with a wide temperature range. Perfect for control systems, data transmission, and control panels, ensuring reliable and safe performance in both indoor and outdoor settings is now easy and convenient with a simple online order. Secure your supply now!
Order your AlphaWire Series861605 16 AWG flexible data cable today and ensure reliable performance for your industrial control and communication projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 861605SL005?
You can click on the BUY or RFQ button to purchase 861605SL005 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 861605SL005?
You can download the 861605SL005 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 861605SL005?
ALPHA WIRE
